Monitor Fabric activity in the monitoring hub

The monitoring hub in Microsoft Fabric provides a central place where you can monitor activity. You can use the monitoring hub to review events related to items you have permission to view.

This lab takes approximately 30 minutes to complete.

Note: You need access to a Microsoft Fabric tenant to complete this exercise.

Create a workspace

Before working with data in Fabric, create a workspace in a tenant with the Fabric capacity enabled.

1. On the Microsoft Fabric home page at https://app.fabric.microsoft.com/home?experience=fabric, select Synapse Data Engineering.
2. In the menu bar on the left, select Workspaces (the icon looks similar to 🗇).
3. Create a new workspace with a name of your choice, selecting a licensing mode in the Advanced section that includes Fabric capacity (Trial, Premium, or Fabric).

4. When your new workspace opens, it should be empty.



Create a lakehouse

Now that you have a workspace, it’s time to create a data lakehouse for your data.

1. In the Synapse Data Engineering home page, create a new Lakehouse with a name of your choice.

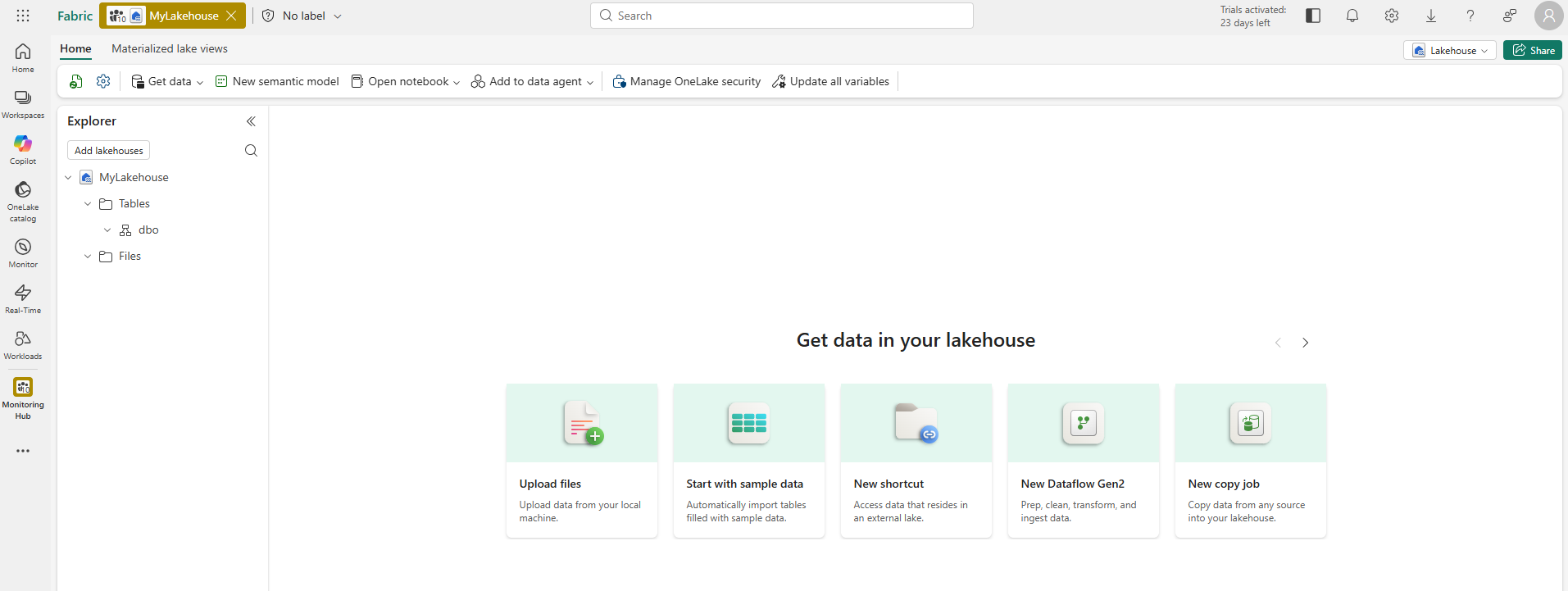

   After a minute or so, a new lakehouse will be created:



2. View the new lakehouse, and note that the Lakehouse explorer pane on the left enables you to browse tables and files in the lakehouse:

   Currently, there are no tables or files in the lakehouse.

Create and monitor a Dataflow

In Microsoft Fabric, you can use a Dataflow (Gen2) to ingest data from a wide range of sources. In this exercise, you’ll use a dataflow to get data from a CSV file and load it into a table in your lakehouse.

1. On the Home page for your lakehouse, in the Get data menu, select New Dataflow Gen2.

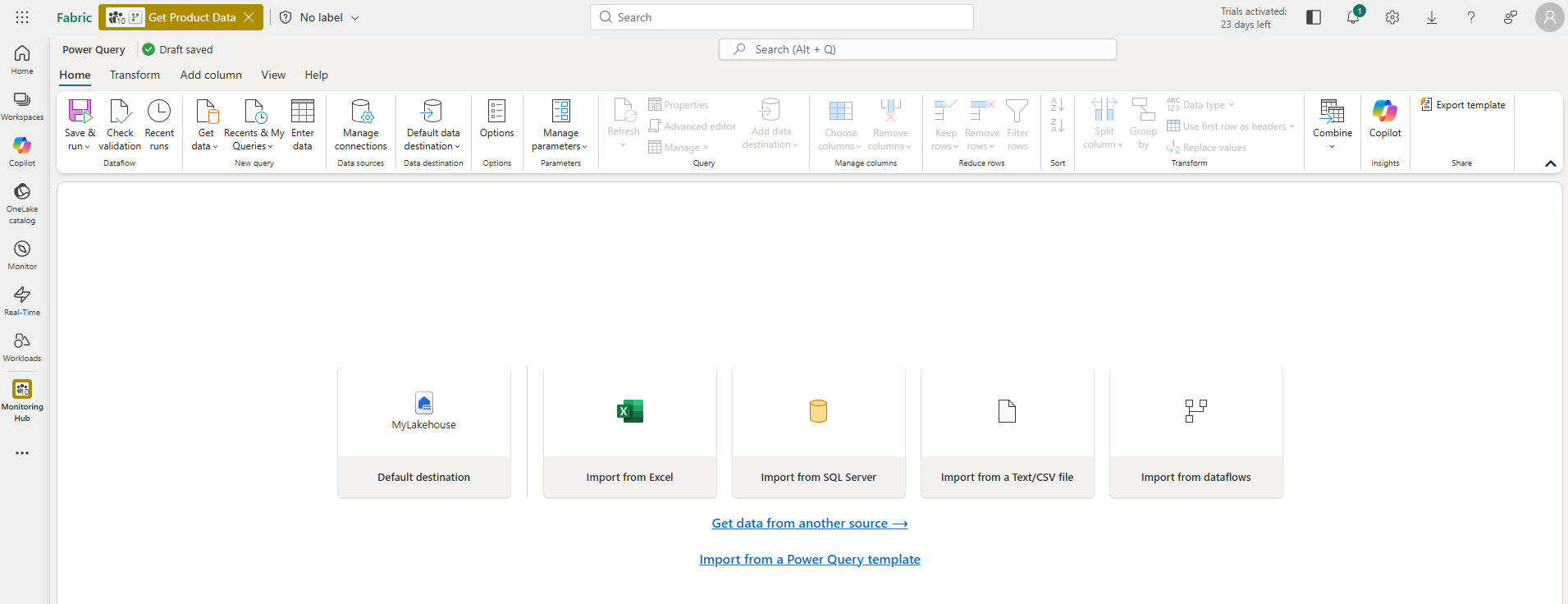

   A new dataflow named Dataflow 1 is created and opened.



2. At the top left of the dataflow page, select Dataflow 1 to see its details and rename the dataflow to Get Product Data.

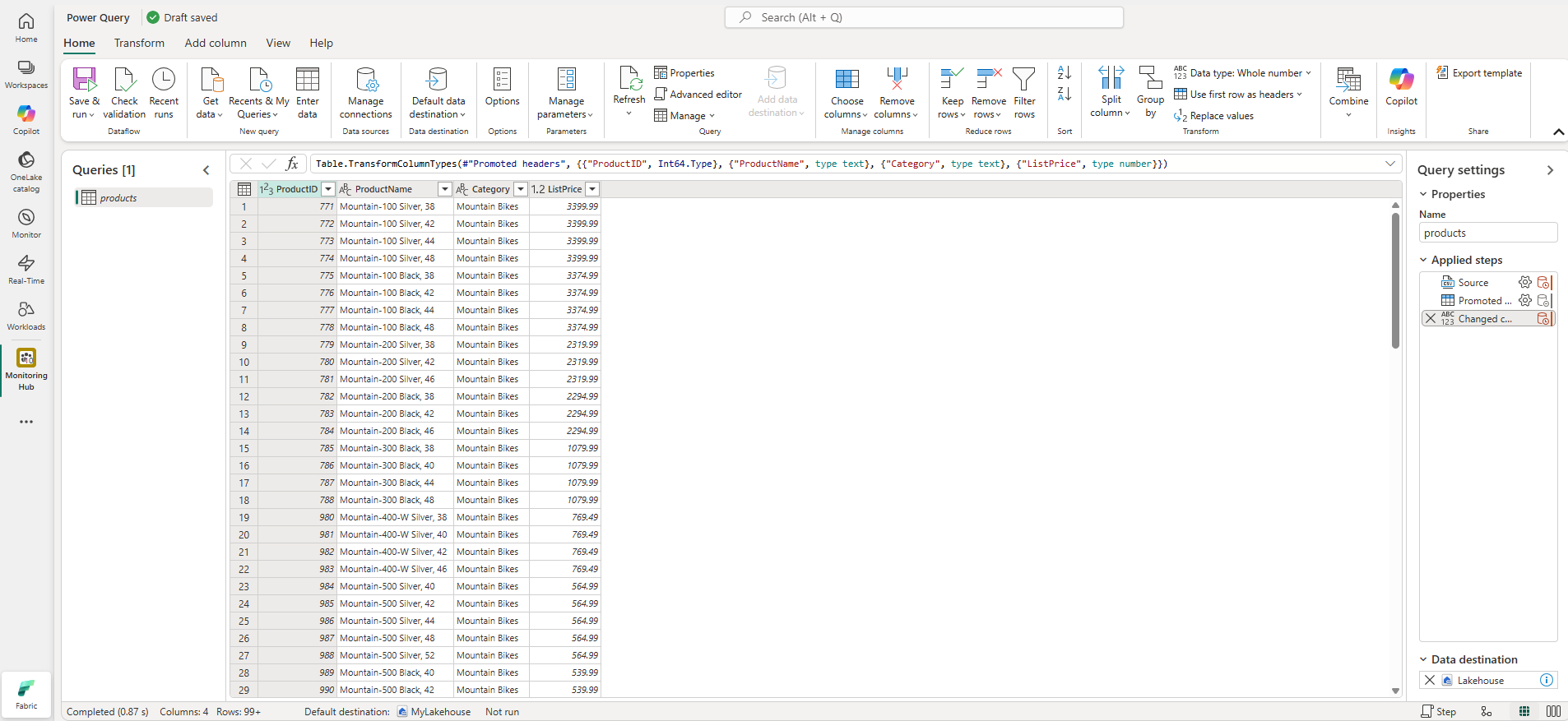

3. In the dataflow designer, select Import from a Text/CSV file. The complete the Get Data wizard to create a data connection by linking to https://raw.githubusercontent.com/MicrosoftLearning/dp-data/main/products.csv using anonymous authentication. When you have completed the wizard, a preview of the data will be shown in the dataflow designer like this:



4. Publish the dataflow.

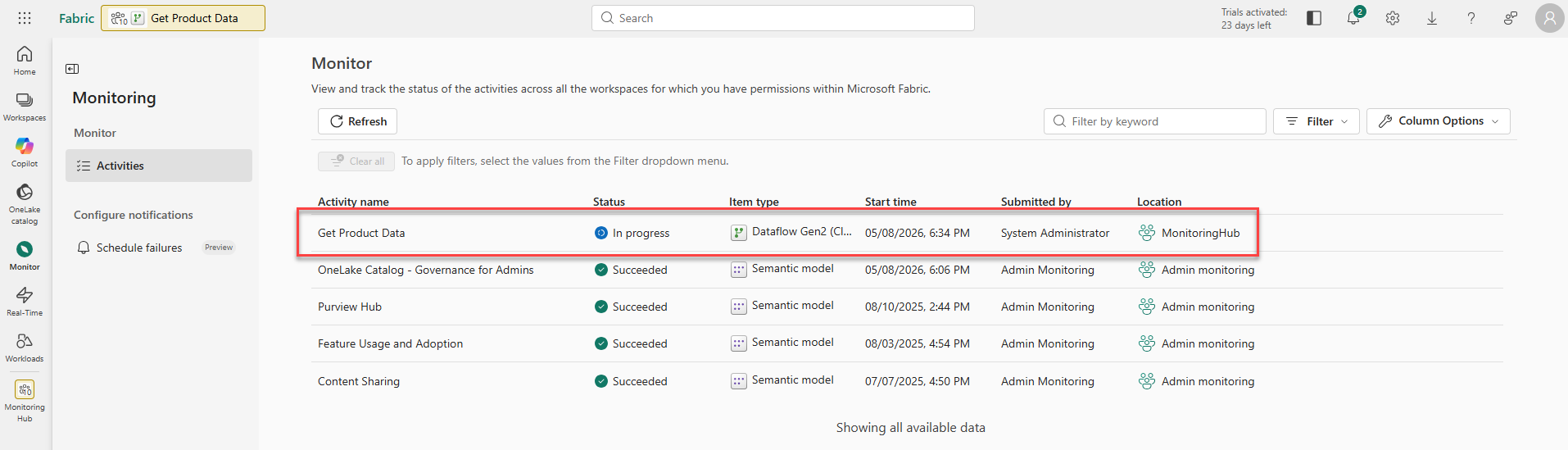

5. In the navigation bar on the left, select Monitor to view the monitoring hub and observe that your dataflow is in-progress (if not, refresh the view until you see it).



6. Wait for a few seconds, and then refresh the page until the status of the dataflow is Succeeded.

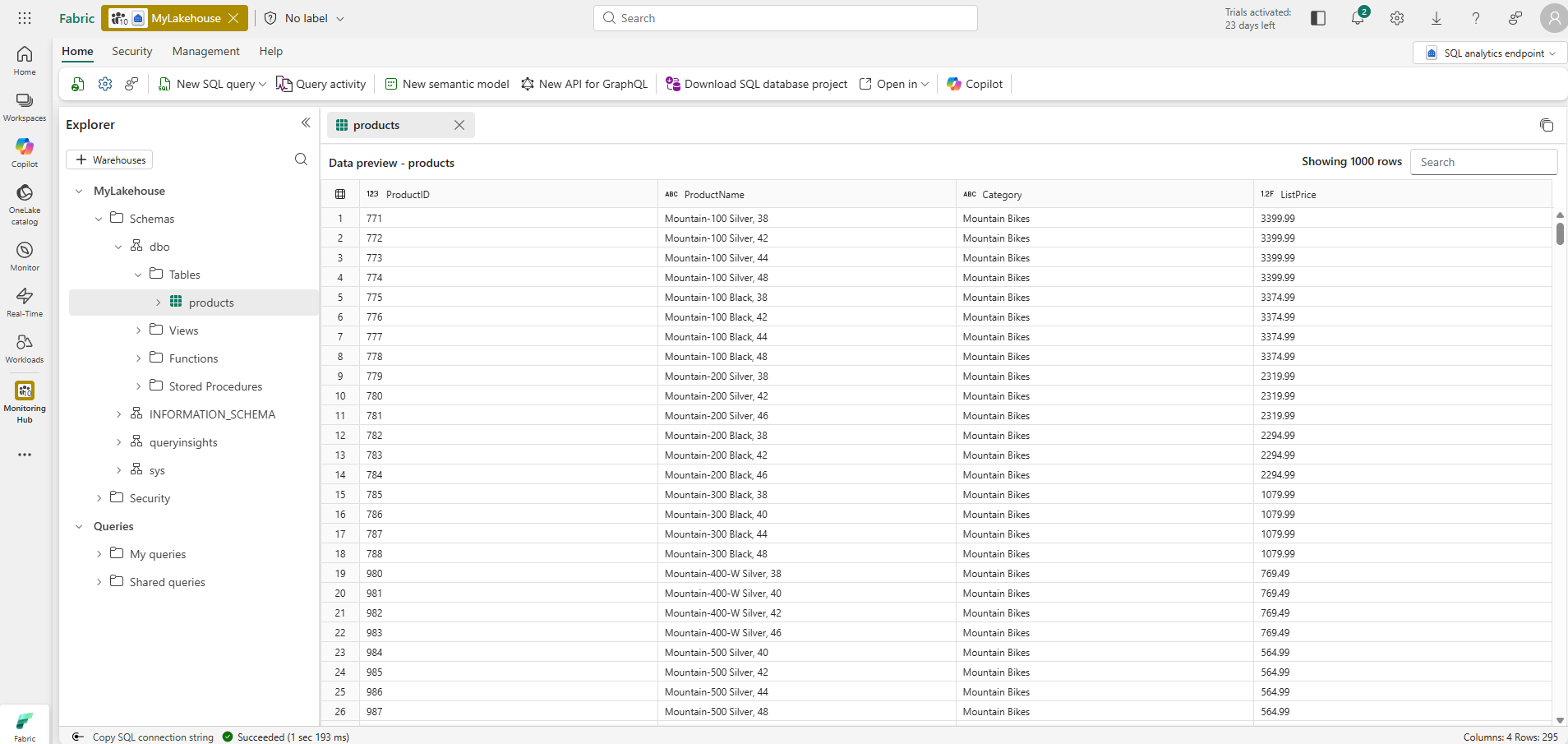

7. In the navigation pane, select your lakehouse. Then expand the Tables folder to verify that a table named products has been created and loaded by the dataflow (you may need to refresh the Tables folder).



Create and monitor a Spark notebook

In Microsoft Fabric, you can use notebooks to run Spark code.

1. In the navigation hub, select Home. The on the Data Engineering home page, create a new Notebook.

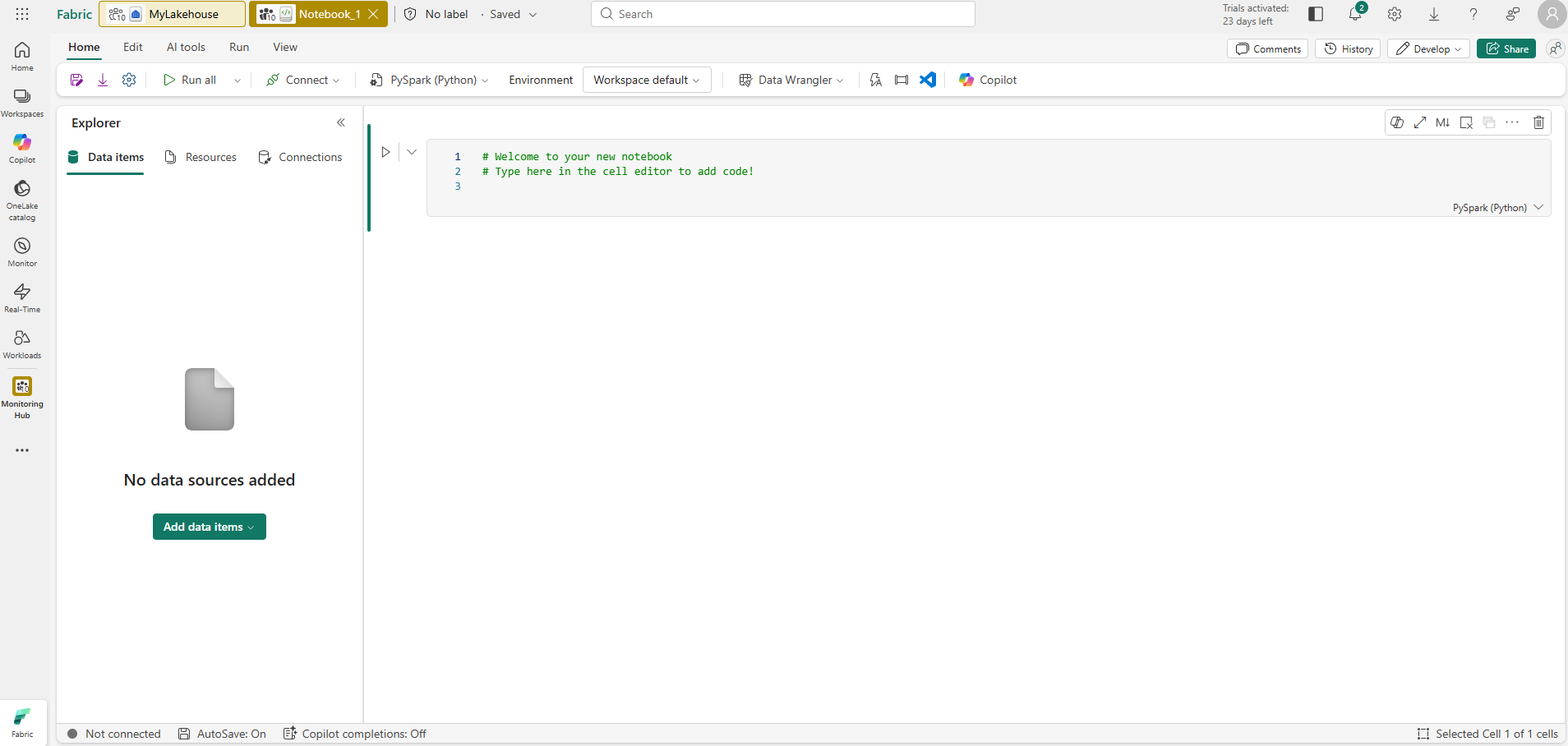

   A new notebook named Notebook 1 is created and opened.



2. At the top left of the notebook, select Notebook 1 to view its details, and change its name to Query Pproducts.
3. In the notebook editor, in the Explorer pane, select Lakehouses and add the lakehouse you created previously.

4. In the … menu for the Products table, select Load data > Spark. This adds a new code cell to the notebook as shown here:

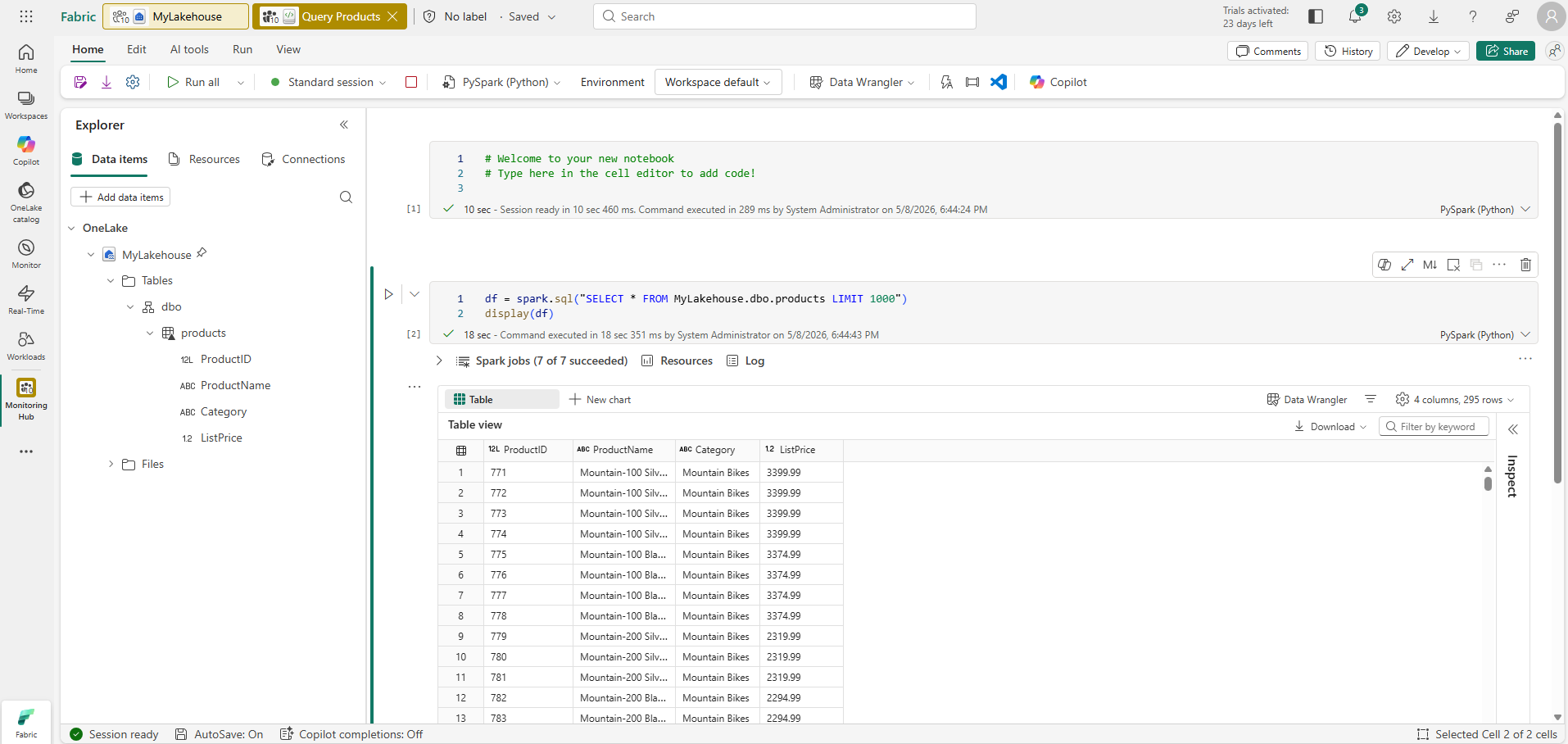

5. Use the ▷ Run all button to run all cells in the notebook. It will take a moment or so to start the Spark session, and then the results of the query will be shown under the code cell.



6. On the toolbar, use the ◻ (Stop session) button to stop the Spark session.

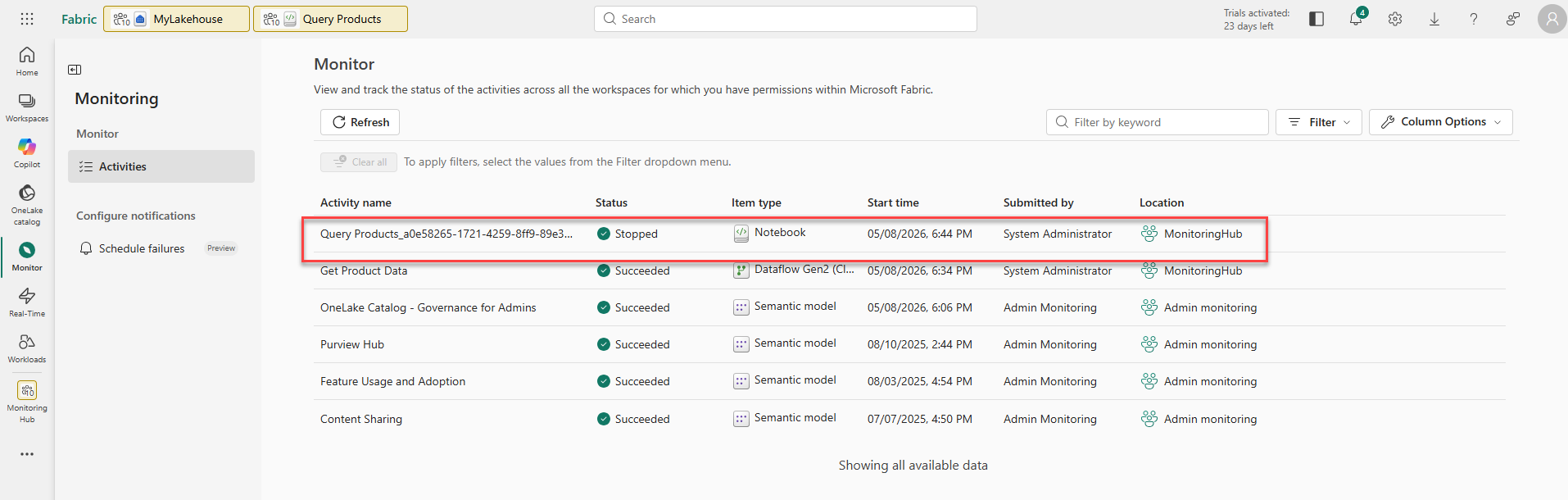

7. In the navigation bar, select Monitor to view the monitoring hub, and note that the notebook activity is listed.



Monitor history for an item

Some items in a workspace might be run multiple times. You can use the monitoring hub to view run their history.

1. In the navigation bar, return to the page for your workspace. Then use the ↻ (Refresh now) button for your Get Product Data dataflow to re-run it.
2. In the navigation pane, select the Monitor page to view the monitoring hub and verify that the dataflow is in-progress.

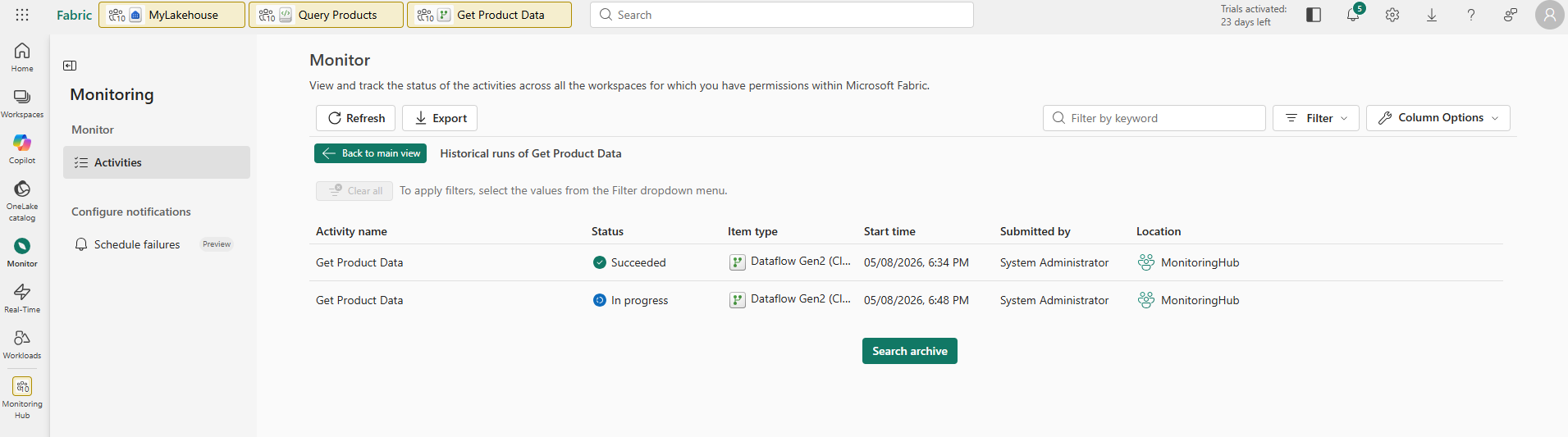

3. In the … menu for the Get Product Data dataflow, select Historical runs to view the run history for the dataflow:



4. In the … menu for any of the historical runs select View detail to see details of the run.
5. Close the Details pane and use the Back to main view button to return to the main monitoring hub page.

Customize monitoring hub views

In this exercise you’ve only run a few activities, so it should be fairly easy to find events in the monitoring hub. However, in a real environment you may need to search through a large number of events. Using filters and other view customizations can make this easier.

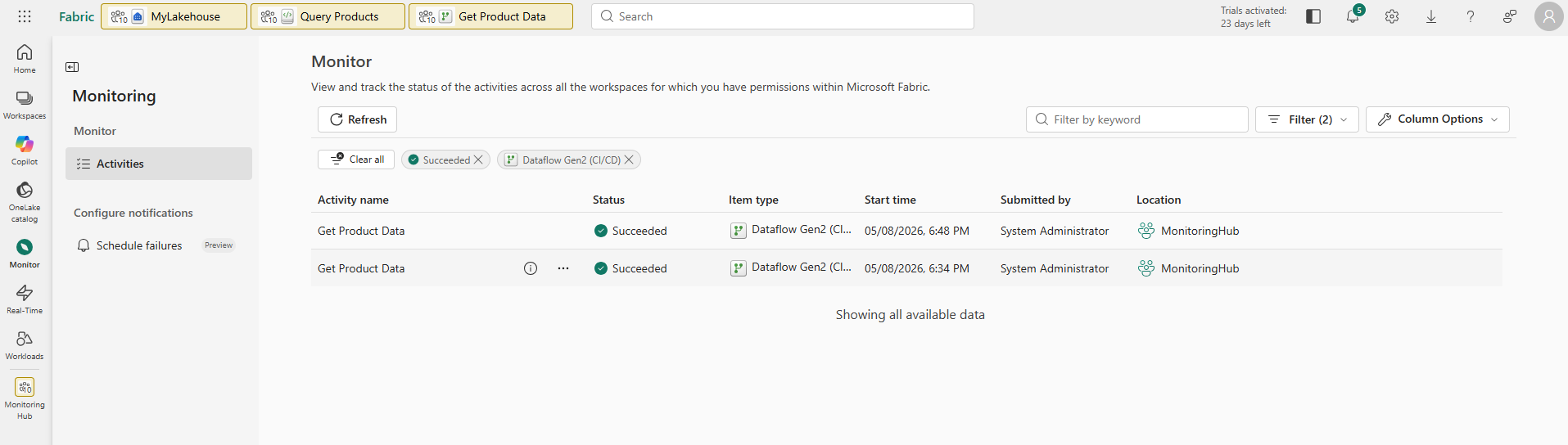

1. In the monitoring hub, use the Filter button to apply the following filter:
   • Status: Succeeeded
   • Item type: Dataflow Gen2

   With the filter applied, only successful runs of dataflows are listed.



2. Use the Column Options button to include the following columns in the view (use the Apply button to apply the changes):
   • Activity time
   • Status
   • Item type
   • Start time
   • Submitted by
   • Location
   • End time
   • Duration
   • Refresh type

   You may need to scroll horizontally to see all of the columns:



Clean up resources

In this exercise, you have created a lakehouse, a dataflow, and a Spark notebook; and you’ve used the monitoring hub to view item activity.

If you’ve finished exploring your lakehouse, you can delete the workspace you created for this exercise.

1. In the bar on the left, select the icon for your workspace to view all of the items it contains.
2. In the … menu on the toolbar, select Workspace settings.
3. In the General section, select Remove this workspace.
