Design a semantic model for scale

In this exercise, you design a semantic model for scale in the Microsoft Fabric service. You connect to lakehouse data using Direct Lake, build star schema relationships, create a calculation group for time intelligence, and configure settings that support large datasets and concurrent consumption. You learn how to:

  • Create a semantic model that connects to lakehouse data through Direct Lake.
  • Design star schema relationships with appropriate filter direction and referential integrity.
  • Create a calculation group for time intelligence across multiple measures.
  • Configure settings for scale, including query scale-out and OneLake integration.

This lab takes approximately 30 minutes to complete.

Tip: For related training content, see Design semantic models for scale in Microsoft Fabric.

Set up the environment

Note: You need access to a Fabric paid or trial capacity to complete this exercise. Paid capacities must include Power BI capabilities, or you need a separate Power BI Pro or Premium Per User license. For information about the free Fabric trial, see Fabric trial.

  1. Navigate to the Microsoft Fabric home page at https://app.fabric.microsoft.com/home?experience=fabric in a browser, and sign in with your Fabric credentials.
  2. In the menu bar on the left, select Workspaces (the icon looks similar to 🗇).
  3. Create a new workspace with a name of your choice, selecting a licensing mode that includes Fabric capacity (Trial, Premium, or Fabric).
  4. When your new workspace opens, it should be empty.

You need a lakehouse with data to model. Import a notebook that creates sample sales data, create a lakehouse, and then run the notebook against it.

  1. Download the Create-Sales-Data.ipynb notebook from https://github.com/MicrosoftLearning/mslearn-fabric/raw/main/Allfiles/Labs/15/Create-Sales-Data.ipynb and save it.

  2. In your workspace, select Import > Notebook and upload the Create-Sales-Data.ipynb file you downloaded. The notebook appears in the workspace after import.

  3. In the workspace, select + New item and create a Lakehouse. Name it SalesLakehouse.

    After a minute or so, a new lakehouse is created.

  4. In the lakehouse, on the Home menu tab, select Open notebook > Existing notebook and select Create-Sales-Data.

  5. The notebook opens with the lakehouse attached. It contains two code cells with comments that explain what each block does: the first cell creates three dimension tables (DimDate, DimProduct, DimCustomer) and the second cell generates 5,000 fact table rows (FactSales).

  6. Select Run all in the toolbar to run both cells. Wait for both cells to complete.

  7. Once both cells complete, use the lakehouse explorer on the left to verify that the following tables appear under Tables:

    • DimCustomer
    • DimDate
    • DimProduct
    • FactSales

    If the tables don’t appear, select the Refresh button on the toolbar.

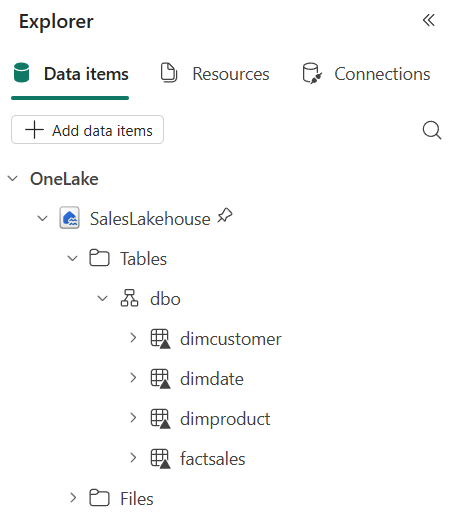

Screenshot of new tables in the lakehouse.

Create a semantic model

In this section, you create a semantic model designed for scale. The model uses Direct Lake to query data directly from lakehouse Delta tables without importing a copy, eliminating refresh bottlenecks and memory limits that constrain large datasets. You then structure the model with star schema relationships, explicit measures, calculation groups, and role-playing dimensions — patterns that keep the model performant and maintainable as the number of tables, measures, and users grows.

  1. In the Lakehouse explorer menu bar, select New semantic model.

  2. Name the model Sales Model and select the following tables to include:
    • DimCustomer
    • DimDate
    • DimProduct
    • FactSales

  3. Select Confirm to create the semantic model. You might need to wait for a minute before the model opens in the web modeling experience.

    The semantic model uses Direct Lake mode by default because it connects to lakehouse Delta tables. No data import or refresh schedule is needed.

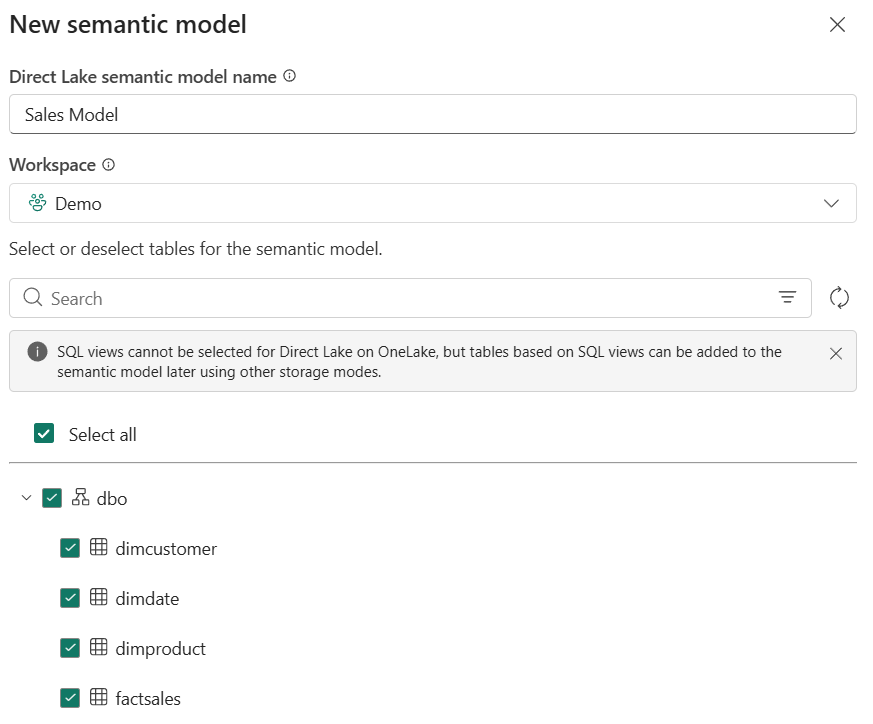

Screenshot of the new semantic model interface.

Design star schema relationships

In this task, you configure the relationships between the fact and dimension tables to form a star schema. A star schema gives the query engine a simple, predictable path from filters to facts. Single-direction relationships and assumed referential integrity enable INNER joins and reduce the work the engine does per query, which matters as row counts grow into the millions.

  1. In the model diagram, arrange the tables so that FactSales is in the center with the three dimension tables around it.

  2. If relationships weren’t automatically detected, create them manually. Select Manage relationships from the ribbon, then select New relationship and configure it as follows:

    Note: Direct Lake tables don’t show data previews in the relationship dialog. Cardinality is determined by table row count, and single cross-filter direction is always populated, but you may need to verify these settings manually.

    • From table: FactSales
      • Select the OrderDateKey column
    • To table: DimDate
      • Select the DateKey column
    • Cardinality: Many to one (*:1)
    • Cross-filter direction: Single
    • Check Make this relationship active
    • Check Assume referential integrity
    • Select Save

    The referential integrity option tells the engine to use INNER joins instead of LEFT OUTER joins, which improves query performance when every foreign key has a matching dimension key.

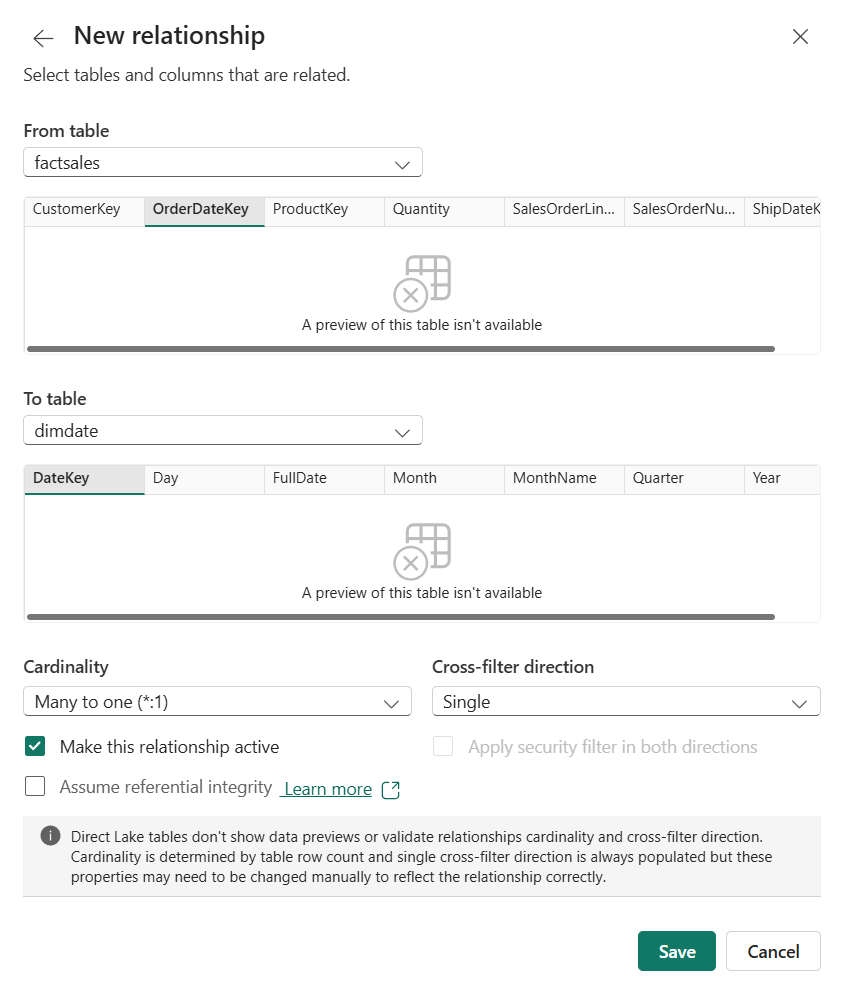

    Screenshot of a new relationship.

  3. Create a second relationship:

    • From table: FactSales
      • Select the CustomerKey column
    • To table: DimCustomer
      • Select the CustomerKey column
    • Cardinality: Many to one (*:1)
    • Cross-filter direction: Single
    • Check Make this relationship active
    • Check Assume referential integrity
    • Select Save

  4. Create a third relationship:

    • From table: FactSales
      • Select the ProductKey column
    • To table: DimProduct
      • Select the ProductKey column
    • Cardinality: Many to one (*:1)
    • Cross-filter direction: Single
    • Check Make this relationship active
    • Check Assume referential integrity
    • Select Save

    Single-direction filtering provides predictable filter propagation in a star schema.

  5. Create a fourth relationship for the ship date:

    • From table: FactSales
      • Select the ShipDateKey column
    • To table: DimDate
      • Select the DateKey column
    • Cardinality: Many to one (*:1)
    • Cross-filter direction: Single
    • Uncheck Make this relationship active since only one active relationship can exist between two tables at a time
    • Check Assume referential integrity
    • Select Save

Your model diagram should now show a star schema with FactSales in the center and three dimension tables filtering inward through single-direction relationships.

Notice how the tables have a blue dotted line at the top. This indicates that these tables are using Direct Lake storage mode.

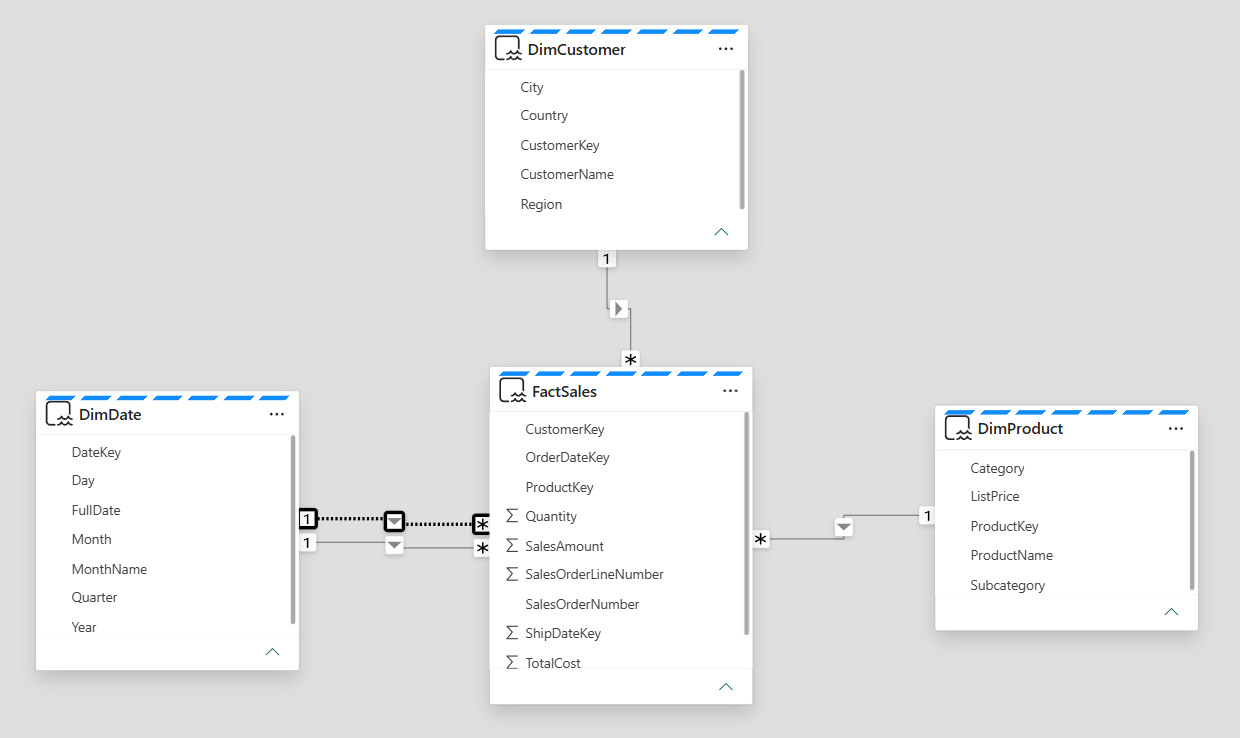

Screenshot of the configured relationships in a star schema.

Create measures

In this task, you create explicit DAX measures on the fact table. Explicit measures are a prerequisite for calculation groups, which are one of the most important patterns for keeping a model manageable at scale.

The FactSales table already contains columns like SalesAmount and TotalCost that hold row-level values. By default, Power BI can auto-aggregate these in visuals using implicit measures. However, when you create a calculation group in the next task, implicit measures are disabled, so you need to define explicit DAX measures for the calculation group items to apply to.

  1. In the Data pane, right-click the FactSales table and select New measure.

Tip: The DAX formulas for all measures, calculation groups, and the USERELATIONSHIP measure can be copied from the Create-Sales-Data notebook you imported earlier. Open the notebook from the workspace to find the formulas in the markdown cells.

  1. In the formula bar, enter the following and press Enter:

     Total Sales = SUM(FactSales[SalesAmount])

  2. Create a second measure on the FactSales table:

     Total Cost = SUM(FactSales[TotalCost])

  3. Create a third measure:

     Profit =
 VAR TotalRevenue = [Total Sales]
 VAR TotalExpense = [Total Cost]
 RETURN
     TotalRevenue - TotalExpense

  4. Create a fourth measure:

     Profit Margin =
 VAR ProfitAmount = [Profit]
 VAR TotalRevenue = [Total Sales]
 RETURN
     DIVIDE(ProfitAmount, TotalRevenue)

    These measures use variables to store intermediate results. Variables improve readability and prevent the engine from evaluating the same expression multiple times.

You now have four new measures in the FactSales table, which are represented by calculator icons.

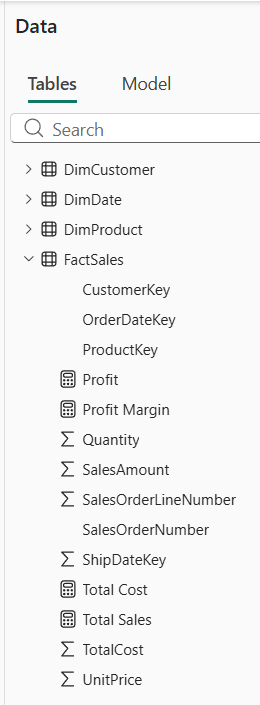

Screenshot of the FactSales table expanded with the new measures.

Create a calculation group

In this task, you create a calculation group for time intelligence that applies across all four base measures without creating separate measures for each combination. Calculation groups prevent measure proliferation — instead of creating separate YTD, QTD, and prior-year variants of every base measure, you define the pattern once and it applies to all measures automatically. This keeps the model metadata small and maintenance low, which becomes critical as the model scales to dozens or hundreds of base measures.

  1. In the model view, select Calculation group from the ribbon to create a new calculation group.

    Choose Yes if prompted to acknowledge that implicit measures will be discouraged in the model.

  2. Rename the calculation group table to Time Calculations and the column to Time Period.

  3. In the Data pane, select the calculation item that was created automatically and replace its formula with:

     Current = SELECTEDMEASURE()

  4. Right-click the Calculation items field and select New calculation item. Create the following items one at a time:

     Year-to-Date =
 CALCULATE(
     SELECTEDMEASURE(),
     DATESYTD('DimDate'[FullDate])
 )

     Quarter-to-Date =
 CALCULATE(
     SELECTEDMEASURE(),
     DATESQTD('DimDate'[FullDate])
 )

     Month-to-Date =
 CALCULATE(
     SELECTEDMEASURE(),
     DATESMTD('DimDate'[FullDate])
 )

     Previous Year =
 CALCULATE(
     SELECTEDMEASURE(),
     PREVIOUSYEAR('DimDate'[FullDate])
 )

  5. Create one more calculation item for year-over-year growth:

     Year-over-Year Growth =
 VAR MeasurePriorYear =
     CALCULATE(
         SELECTEDMEASURE(),
         SAMEPERIODLASTYEAR('DimDate'[FullDate])
     )
 RETURN
     DIVIDE(
         (SELECTEDMEASURE() - MeasurePriorYear),
         MeasurePriorYear
     )

  6. Select the Year-over-Year Growth item and then enable the Dynamic format string feature in the Properties pane.

    • Set the format string to: "0.##%"

    This dynamic format string ensures that when Year-over-Year Growth is selected in a visual, the result displays as a percentage rather than a raw decimal, regardless of which base measure it applies to.

  7. Verify that your calculation group has six items: Current, Year-to-Date, Quarter-to-Date, Month-to-Date, Previous Year, and Year-over-Year Growth.

These six items now apply to all four base measures automatically. Without the calculation group, you would need 24 separate measures (4 base measures x 6 time patterns). As the model grows to 50 or 100 base measures, this pattern prevents measure proliferation.

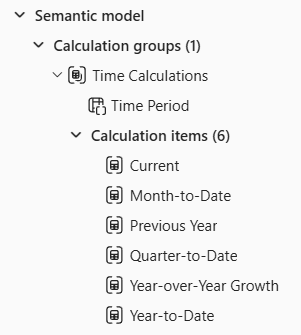

Screenshot of the final state of the calculation group.

Use USERELATIONSHIP for the inactive ship date relationship

In this task, you create a measure that activates the inactive ship date relationship. Role-playing dimensions let you analyze data by different date columns (order date, ship date) without duplicating the Date table. Avoiding duplicate tables reduces model size and keeps relationships simple, both of which support scale.

  1. In the Data pane, right-click the FactSales table and select New measure.

  2. Enter the following formula and press Enter:

     Sales by Ship Date =
 CALCULATE(
     [Total Sales],
     USERELATIONSHIP(FactSales[ShipDateKey], DimDate[DateKey])
 )

    This measure uses USERELATIONSHIP to temporarily activate the inactive relationship between FactSales.ShipDateKey and DimDate.DateKey. This pattern lets you analyze data by different date columns without duplicating the Date table.

Configure settings for scale

In this task, you configure workspace-level settings that prepare the model for production use. These settings won’t change what you see in the report you build next, but they’re what distinguish a lab prototype from a production-ready model.

  1. Navigate back to your workspace and find Sales Model in the workspace item list. Select the … (ellipsis) menu next to it and select Settings.

  2. Expand the Query scale-out section. Toggle Query scale-out to On.

    With query scale-out enabled, Fabric can create read-only replicas of your model so that multiple users running reports simultaneously don’t compete for the same resources. This is critical when dashboards are shared across large teams. Direct Lake models already have large semantic model storage format enabled (a prerequisite), so this setting is ready to use immediately.

  3. Expand the OneLake integration section. Toggle OneLake integration to On.

    With OneLake integration, the data in your semantic model becomes accessible as Delta tables in OneLake. This means data engineers can consume the same curated data in notebooks, pipelines, or other Fabric items without duplicating it, keeping the model as the single source of truth.

Validate the model with a report

In this section, you create a report to verify that relationships, measures, and the calculation group work correctly.

  1. Navigate back to your workspace and find Sales Model in the workspace item list. Select the … (ellipsis) menu next to it and select Create report.

  2. In the report canvas, create a Clustered bar chart visual. Add the following fields:

    • DimProduct > Category on the Y-axis
    • Total Sales on the X-axis

    Screenshot of the Clustered bar chart icon.

  3. Verify that sales data appears broken out by product category. This confirms the relationships between your dimension and fact tables are working.

  4. With the bar chart still selected, add the Time Period column from the Time Calculations table to the Legend area. The chart now shows grouped bars for each time intelligence calculation per category, confirming the calculation group is working.

  5. Create a Card visual and add both the Total Sales and Sales by Ship Date measures so you can see them side by side.

    Screenshot of a Card icon.

  6. Create a Slicer visual and add DimDate > Year. The slicer defaults to a Between slider.

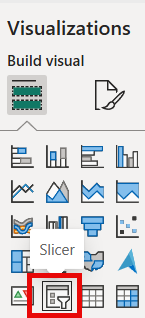

    Screenshot of a Slicer icon.

  7. Adjust the slider to different year ranges (for example, 2022–2023 or 2023–2024) and observe how the Total Sales and Sales by Ship Date values change in the card.

The two values differ because Total Sales uses the active relationship on OrderDateKey while Sales by Ship Date uses USERELATIONSHIP to activate the inactive relationship on ShipDateKey.

Since ship dates are 14–60 days after order dates, orders near year boundaries can fall into different years depending on which date is used. When the slicer covers the full range (2022–2024), the values are closer because most rows are included regardless of which date key is filtered.

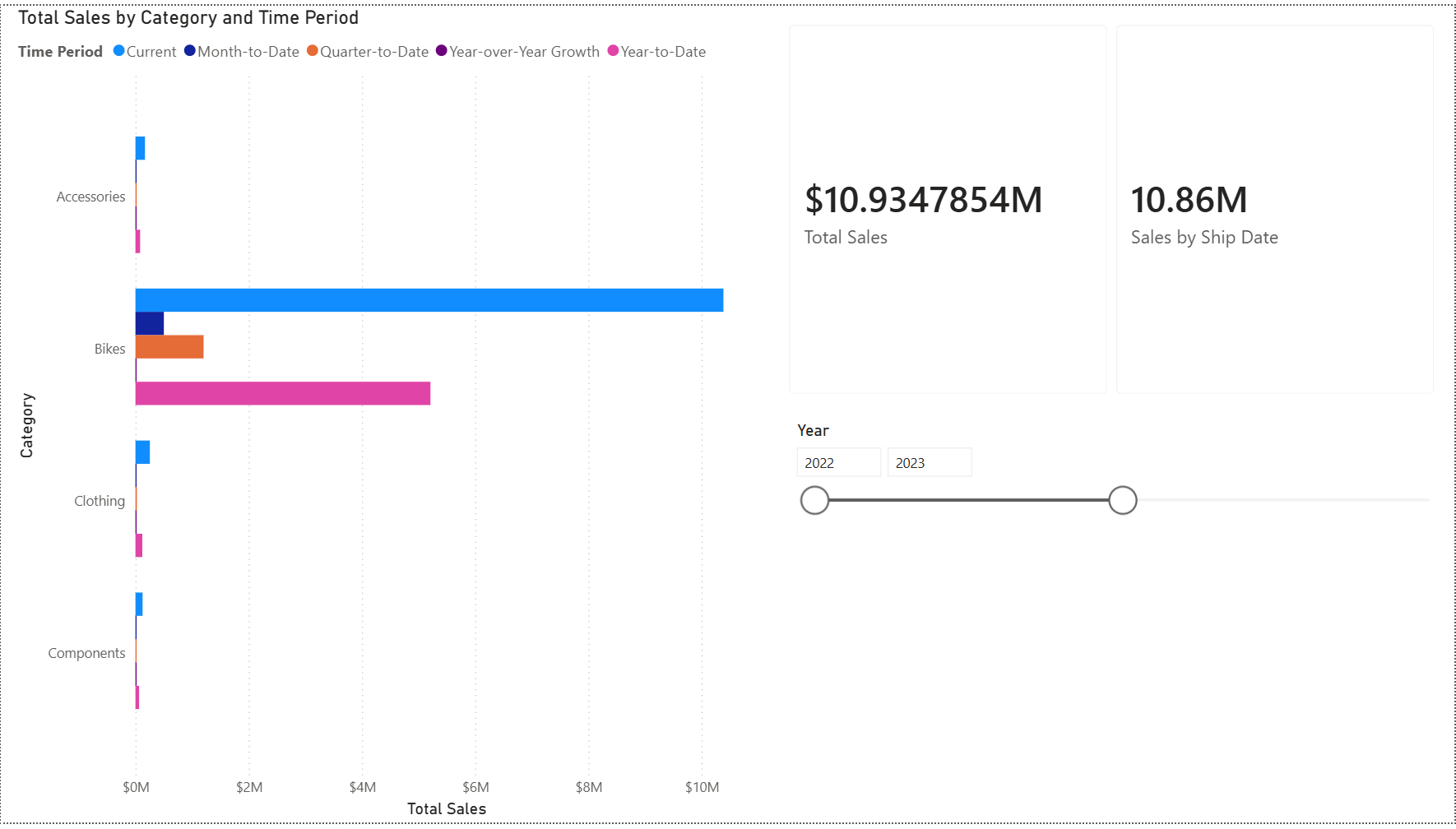

Screenshot of the report page as designed to show the calculation group and active and inactive relationships being used.

Try it with Copilot (optional)

Copilot works best with well-structured semantic models. In this section, you test whether Copilot can answer questions accurately against the star schema you built.

If your workspace supports Copilot, try asking it questions about the model data.

  1. In the report, select the Copilot button in the ribbon (if available).

  2. Ask Copilot: "What was the total sales for each product category last year?"

  3. Observe whether Copilot returns an accurate answer. The star schema you built, with a single fact table, clear many-to-one relationships, and explicit DAX measures, gives Copilot a straightforward path to resolve the question. Models with ambiguous relationships or missing measures are harder for Copilot to interpret correctly.

Clean up resources

In this exercise, you created a semantic model with Direct Lake storage mode, star schema relationships, calculation groups, and scale settings.

  1. Close the report without saving, or delete it if you saved it.
  2. Navigate to your workspace.
  3. Select the … menu next to Sales Model and SalesLakehouse, and select Delete to remove them from your workspace.
