Generate images with AI

In this exercise, you use the OpenAI DALL-E generative AI model to generate images. You also use the OpenAI Python SDK to create a simple app to generate images based on your prompts.

Note: This exercise is based on pre-release SDK software, which may be subject to change. Where necessary, we’ve used specific versions of packages; which may not reflect the latest available versions. You may experience some unexpected behavior, warnings, or errors.

While this exercise is based on the OpenAI Python SDK, you can develop AI chat applications using multiple language-specific SDKs; including:

This exercise takes approximately 30 minutes.

Open Azure AI Foundry portal

Let’s start by signing into Azure AI Foundry portal.

  1. In a web browser, open the Azure AI Foundry portal at https://ai.azure.com and sign in using your Azure credentials. Close any tips or quick start panes that are opened the first time you sign in, and if necessary use the Azure AI Foundry logo at the top left to navigate to the home page, which looks similar to the following image (close the Help pane if it’s open):

    Screenshot of Azure AI Foundry portal.

  2. Review the information on the home page.

Choose a model to start a project

An Azure AI project provides a collaborative workspace for AI development. Let’s start by choosing a model that we want to work with and creating a project to use it in.

Note: AI Foundry projects can be based on an Azure AI Foundry resource, which provides access to AI models (including Azure OpenAI), Azure AI services, and other resources for developing AI agents and chat solutions. Alternatively, projects can be based on AI hub resources; which include connections to Azure resources for secure storage, compute, and specialized tools. Azure AI Foundry based projects are great for developers who want to manage resources for AI agent or chat app development. AI hub based projects are more suitable for enterprise development teams working on complex AI solutions.

  1. In the home page, in the Explore models and capabilities section, search for the dall-e-3 model; which we’ll use in our project.

  2. In the search results, select the dall-e-3 model to see its details, and then at the top of the page for the model, select Use this model.

  3. When prompted to create a project, enter a valid name for your project and expand Advanced options.

  4. Select Customize and specify the following settings for your hub:
    • Azure AI Foundry resource: A valid name for your Azure AI Foundry resource
    • Subscription: Your Azure subscription
    • Resource group: Create or select a resource group
    • Region: Select any AI Services supported location*

    * Some Azure AI resources are constrained by regional model quotas. In the event of a quota limit being exceeded later in the exercise, there’s a possibility you may need to create another resource in a different region.

  5. Select Create and wait for your project, including the dall-e-3 model deployment you selected, to be created.

    Note: Depending on your model selection you might receive additional prompts during the project creation process. Agree to the terms and finalize the deployment.

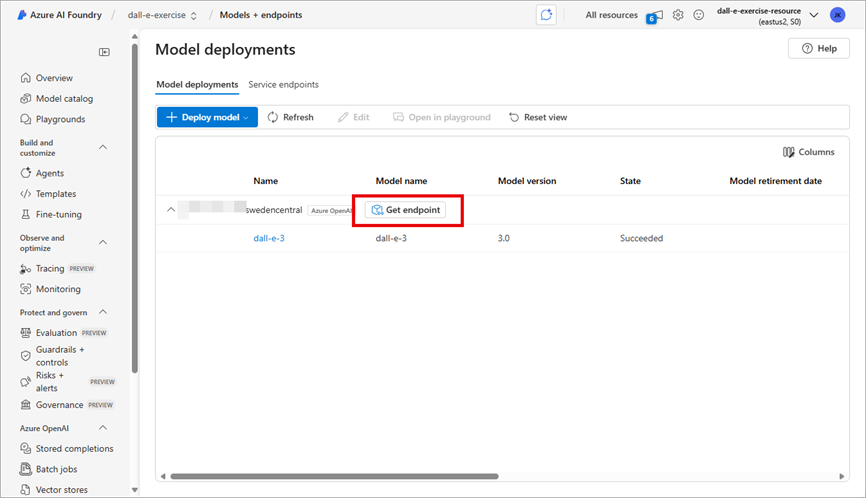

  6. When your project is created, your model will be displayed in the Models + endpoints page.

Test the model in the playground

Before creating a client application, let’s test the DALL-E model in the playground.

  1. Select Playgrounds, and then Images playground.

  2. Ensure your DALL-E model deployment is selected. Then, in the box near the bottom of the page, enter a prompt such as Create an image of an robot eating spaghetti and select Generate.

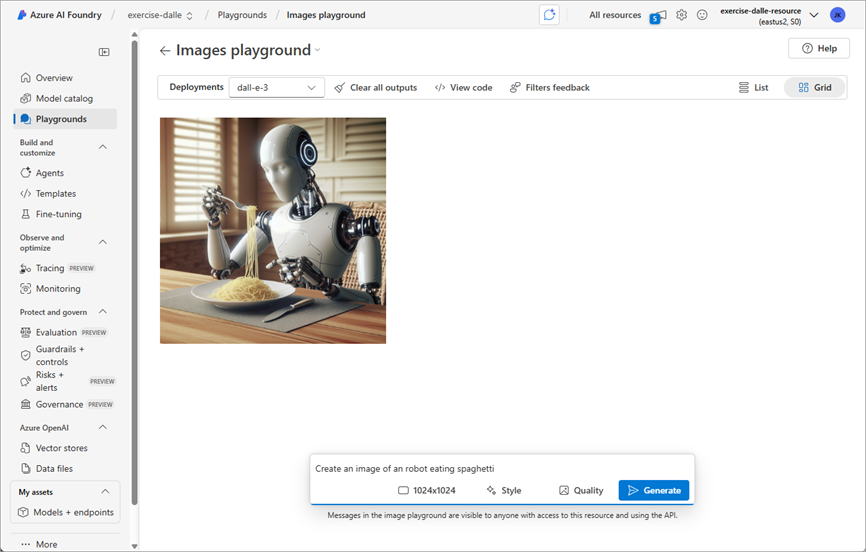

  3. Review the resulting image in the playground:

    Screenshot of the images playground with a generated image.

  4. Enter a follow-up prompt, such as Show the robot in a restaurant and review the resulting image.

  5. Continue testing with new prompts to refine the image until you are happy with it.

  6. Select the </> View Code button and ensure you are on the Entra ID authentication tab. Then record the following information for use later in the exercise. Note the values are examples, be sure to record the information from your deployment.

    • OpenAI Endpoint: https://dall-e-aus-resource.cognitiveservices.azure.com/
    • OpenAI API version: 2024-04-01-preview
    • Deployment name (model name): dall-e-3

Create a client application

The model seems to work in the playground. Now you can use the OpenAI SDK to use it in a client application.

Prepare the application configuration

  1. Open a new browser tab (keeping the Azure AI Foundry portal open in the existing tab). Then in the new tab, browse to the Azure portal at https://portal.azure.com; signing in with your Azure credentials if prompted.

  2. Use the [>_] button to the right of the search bar at the top of the page to create a new Cloud Shell in the Azure portal, selecting a PowerShell environment. The cloud shell provides a command line interface in a pane at the bottom of the Azure portal.

    Note: If you have previously created a cloud shell that uses a Bash environment, switch it to PowerShell.

  3. In the cloud shell toolbar, in the Settings menu, select Go to Classic version (this is required to use the code editor).

    Ensure you've switched to the classic version of the cloud shell before continuing.

  4. In the cloud shell pane, enter the following commands to clone the GitHub repo containing the code files for this exercise (type the command, or copy it to the clipboard and then right-click in the command line and paste as plain text):

     rm -r mslearn-ai-vision -f
 git clone https://github.com/MicrosoftLearning/mslearn-ai-vision

    Tip: As you paste commands into the cloudshell, the ouput may take up a large amount of the screen buffer. You can clear the screen by entering the cls command to make it easier to focus on each task.

  5. After the repo has been cloned, navigate to the folder containing the application code files:

    cd mslearn-ai-vision/Labfiles/dalle-client/python

  6. In the cloud shell command line pane, enter the following command to install the libraries you’ll use:

    python -m venv labenv
./labenv/bin/Activate.ps1
pip install -r requirements.txt azure-identity openai requests

  7. Enter the following command to edit the configuration file that has been provided:

    code .env

    The file is opened in a code editor.

  8. Replace the your_endpoint, your_model_deployment, and your_api_version placeholders with the values you recorded from the from the Images playground.

  9. After you’ve replaced the placeholders, use the CTRL+S command to save your changes and then use the CTRL+Q command to close the code editor while keeping the cloud shell command line open.

Write code to connect to your project and chat with your model

Tip: As you add code, be sure to maintain the correct indentation.

  1. Enter the following command to edit the code file that has been provided:

    code dalle-client.py

  2. In the code file, note the existing statements that have been added at the top of the file to import the necessary SDK namespaces. Then, under the comment Add references, add the following code to reference the namespaces in the libraries you installed previously:

    # Add references
from dotenv import load_dotenv
from azure.identity import DefaultAzureCredential, get_bearer_token_provider
from openai import AzureOpenAI
import requests

  3. In the main function, under the comment Get configuration settings, note that the code loads the endpoint, API version, and model deployment name values you defined in the configuration file.

  4. Under the comment Initialize the client, add the following code to connect to your model using the Azure credentials you are currently signed in with:

    # Initialize the client
token_provider = get_bearer_token_provider(
    DefaultAzureCredential(exclude_environment_credential=True,
        exclude_managed_identity_credential=True),
    "https://cognitiveservices.azure.com/.default"
)

client = AzureOpenAI(
    api_version=api_version,
    azure_endpoint=endpoint,
    azure_ad_token_provider=token_provider
)

  5. Note that the code includes a loop to allow a user to input a prompt until they enter “quit”. Then in the loop section, under the comment Generate an image, add the following code to submit the prompt and retrieve the URL for the generated image from your model:

    Python

    # Generate an image
result = client.images.generate(
     model=model_deployment,
     prompt=input_text,
     n=1
 )

json_response = json.loads(result.model_dump_json())
image_url = json_response["data"][0]["url"]

  6. Note that the code in the remainder of the main function passes the image URL and a filename to a provided function, which downloads the generated image and saves it as a .png file.

  7. Use the CTRL+S command to save your changes to the code file and then use the CTRL+Q command to close the code editor while keeping the cloud shell command line open.

Run the client application

  1. In the cloud shell command-line pane, enter the following command to sign into Azure.

    az login

    You must sign into Azure - even though the cloud shell session is already authenticated.

    Note: In most scenarios, just using az login will be sufficient. However, if you have subscriptions in multiple tenants, you may need to specify the tenant by using the –tenant parameter. See Sign into Azure interactively using the Azure CLI for details.

  2. When prompted, follow the instructions to open the sign-in page in a new tab and enter the authentication code provided and your Azure credentials. Then complete the sign in process in the command line, selecting the subscription containing your Azure AI Foundry hub if prompted.

  3. In the cloud shell command line pane, enter the following command to run the app:

    python dalle-client.py

  4. When prompted, enter a request for an image, such as Create an image of a robot eating pizza. After a moment or two, the app should confirm that the image has been saved.

  5. Try a few more prompts. When you’re finished, enter quit to exit the program.

    Note: In this simple app, we haven’t implemented logic to retain conversation history; so the model will treat each prompt as a new request with no context of the previous prompt.

  6. To download and view the images that were generated by your app, use the cloud shell download command - specifying the .png file that was generated:

    download ./images/image_1.png

    The download command creates a popup link at the bottom right of your browser, which you can select to download and open the file.

Summary

In this exercise, you used Azure AI Foundry and the Azure OpenAI SDK to create a client application uses a DALL-E model to generate images.

Clean up

If you’ve finished exploring DALL-E, you should delete the resources you have created in this exercise to avoid incurring unnecessary Azure costs.

  1. Return to the browser tab containing the Azure portal (or re-open the Azure portal at https://portal.azure.com in a new browser tab) and view the contents of the resource group where you deployed the resources used in this exercise.
  2. On the toolbar, select Delete resource group.
  3. Enter the resource group name and confirm that you want to delete it.
