Analyze images

Azure AI Vision is an artificial intelligence capability that enables software systems to interpret visual input by analyzing images. In Microsoft Azure, the Vision Azure AI service provides pre-built models for common computer vision tasks, including analysis of images to suggest captions and tags, detection of common objects and people. You can also use the Azure AI Vision service to remove the background or create a foreground matting of images.

This exercise takes approximately 30 minutes.

Provision an Azure AI Vision resource

If you don’t already have one in your subscription, you’ll need to provision an Azure AI Vision resource.

Note: In this exercise, you’ll use a standalone Computer Vision resource. You can also use Azure AI Vision services in an Azure AI Services multi-service resource, either directly or in an Azure AI Foundry project.

  1. Open the Azure portal at https://portal.azure.com, and sign in using your Azure credentials. Close any welcome messages or tips that are displayed.
  2. Select Create a resource.
  3. In the search bar, search for Computer Vision, select Computer Vision, and create the resource with the following settings:
    • Subscription: Your Azure subscription
    • Resource group: Create or select a resource group
    • Region: Choose from East US, West US, France Central, Korea Central, North Europe, Southeast Asia, West Europe, or East Asia*
    • Name: A valid name for your Computer Vision resource
    • Pricing tier: Free F0

    *Azure AI Vision 4.0 full feature sets are currently only available in these regions.

  4. Select the required checkboxes and create the resource.
  5. Wait for deployment to complete, and then view the deployment details.
  6. When the resource has been deployed, go to it and under the Resource management node in the navigation pane, view its Keys and Endpoint page. You will need the endpoint and one of the keys from this page in the next procedure.

Develop an image analysis app with the Azure AI Vision SDK

In this exercise, you’ll complete a partially implemented client application that uses the Azure AI Vision SDK to analyze images.

Note: You can choose to use the SDK for either C# or Python. In the steps below, perform the actions appropriate for your preferred language.

Prepare the application configuration

  1. In the Azure portal, use the [>_] button to the right of the search bar at the top of the page to create a new Cloud Shell in the Azure portal, selecting a PowerShell environment with no storage in your subscription.

    The cloud shell provides a command-line interface in a pane at the bottom of the Azure portal.

    Note: If you have previously created a cloud shell that uses a Bash environment, switch it to PowerShell.

  2. In the cloud shell toolbar, in the Settings menu, select Go to Classic version (this is required to use the code editor).

    Ensure you've switched to the classic version of the cloud shell before continuing.

  3. Resize the cloud shell pane so you can still see the Keys and Endpoint page for your Computer Vision resource.

    Tip” You can resize the pane by dragging the top border. You can also use the minimize and maximize buttons to switch between the cloud shell and the main portal interface.

  4. In the cloud shell pane, enter the following commands to clone the GitHub repo containing the code files for this exercise (type the command, or copy it to the clipboard and then right-click in the command line and paste as plain text):

     rm -r mslearn-ai-vision -f
 git clone https://github.com/MicrosoftLearning/mslearn-ai-vision

    Tip: As you paste commands into the cloudshell, the ouput may take up a large amount of the screen buffer. You can clear the screen by entering the cls command to make it easier to focus on each task.

  5. After the repo has been cloned, use the following commands to navigate to and view the language-specific folder containing the application code files, based on the programming language of your choice (Python or C#):

    Python

    cd mslearn-ai-vision/Labfiles/analyze-images/python/image-analysis
ls -a -l

    C#

    cd mslearn-ai-vision/Labfiles/analyze-images/c-sharp/image-analysis
ls -a -l

    The folder contains application configuration and code files for your app. It also contains a /images subfolder, which contains some image files for your app to analyze.

  6. Install the Azure AI Vision SDK package and other required packages by running the appropriate commands for your language preference:

    Python

    python -m venv labenv
./labenv/bin/Activate.ps1
pip install -r requirements.txt azure-ai-vision-imageanalysis==1.0.0

    C#

    dotnet add package Azure.AI.Vision.ImageAnalysis -v 1.0.0

  7. Enter the following command to edit the configuration file for your app:

    Python

    code .env

    C#

    code appsettings.json

    The file is opened in a code editor.

  8. In the code file, update the configuration values it contains to reflect the endpoint and an authentication key for your Computer Vision resource (copied from its Keys and Endpoint page in the Azure portal).
  9. After you’ve replaced the placeholders, use the CTRL+S command to save your changes and then use the CTRL+Q command to close the code editor while keeping the cloud shell command line open.

Add code to suggest a caption

  1. In the cloud shell command line, enter the following command to open the code file for the client application:

    Python

    code image-analysis.py

    C#

    code Program.cs

    Tip: You might want to maximize the cloud shell pane and move the split-bar between the command line cosole and the code editor so you can see the code more easily.

  2. In the code file, find the comment Import namespaces, and add the following code to import the namespaces you will need to use the Azure AI Vision SDK:

    Python

    # import namespaces
from azure.ai.vision.imageanalysis import ImageAnalysisClient
from azure.ai.vision.imageanalysis.models import VisualFeatures
from azure.core.credentials import AzureKeyCredential

    C#

    // Import namespaces
using Azure.AI.Vision.ImageAnalysis;

  3. In the Main function, note that the code to load the configuration settings and determine the image file to be analyzed has been provided. Then find the comment Authenticate Azure AI Vision client and add the following code to create and authenticate a Azure AI Vision client object (be sure to maintain the correct indentation levels):

    Python

    # Authenticate Azure AI Vision client
cv_client = ImageAnalysisClient(
     endpoint=ai_endpoint,
     credential=AzureKeyCredential(ai_key))

    C#

    // Authenticate Azure AI Vision client
ImageAnalysisClient client = new ImageAnalysisClient(
     new Uri(aiSvcEndpoint),
     new AzureKeyCredential(aiSvcKey));

  4. In the Main function, under the code you just added, find the comment Analyze image and add the following code:

    Python

    # Analyze image
with open(image_file, "rb") as f:
     image_data = f.read()
print(f'\nAnalyzing {image_file}\n')

result = cv_client.analyze(
     image_data=image_data,
     visual_features=[
         VisualFeatures.CAPTION,
         VisualFeatures.DENSE_CAPTIONS,
         VisualFeatures.TAGS,
         VisualFeatures.OBJECTS,
         VisualFeatures.PEOPLE],
)

    C#

    // Analyze image
using FileStream stream = new FileStream(imageFile, FileMode.Open);
Console.WriteLine($"\nAnalyzing {imageFile} \n");

ImageAnalysisResult result = client.Analyze(
     BinaryData.FromStream(stream),
     VisualFeatures.Caption |
     VisualFeatures.DenseCaptions |
     VisualFeatures.Objects |
     VisualFeatures.Tags |
     VisualFeatures.People);

  5. Find the comment Get image captions, add the following code to display image captions and dense captions:

    Python

    # Get image captions
if result.caption is not None:
     print("\nCaption:")
     print(" Caption: '{}' (confidence: {:.2f}%)".format(result.caption.text, result.caption.confidence * 100))

if result.dense_captions is not None:
     print("\nDense Captions:")
     for caption in result.dense_captions.list:
         print(" Caption: '{}' (confidence: {:.2f}%)".format(caption.text, caption.confidence * 100))

    C#

    // Get image captions
if (result.Caption.Text != null)
{
     Console.WriteLine("\nCaption:");
     Console.WriteLine($"   \"{result.Caption.Text}\", Confidence {result.Caption.Confidence:0.00}\n");
}

Console.WriteLine(" Dense Captions:");
foreach (DenseCaption denseCaption in result.DenseCaptions.Values)
{
     Console.WriteLine($"   Caption: '{denseCaption.Text}', Confidence: {denseCaption.Confidence:0.00}");
}

  6. Save your changes (CTRL+S) and resize the panes so you can clearly see the command line console while keeping the code editor open. Then enter the following command to run the program with the argument images/street.jpg:

    Python

    python image-analysis.py images/street.jpg

    C#

    dotnet run images/street.jpg

  7. Observe the output, which should include a suggested caption for the street.jpg image, which looks like this:

    A picture of a busy street.

  8. Run the program again, this time with the argument images/building.jpg to see the caption that gets generated for the building.jpg image, which looks like this:

    A picture of a building.

  9. Repeat the previous step to generate a caption for the images/person.jpg file, which looks like this:

    A picture of a person.

Add code to generate suggested tags

It can sometimes be useful to identify relevant tags that provide clues about the contents of an image.

  1. In the code editor, in the AnalyzeImage function, find the comment Get image tags and add the following code:

    Python

    # Get image tags
if result.tags is not None:
     print("\nTags:")
     for tag in result.tags.list:
         print(" Tag: '{}' (confidence: {:.2f}%)".format(tag.name, tag.confidence * 100))

    C#

    // Get image tags
if (result.Tags.Values.Count > 0)
{
     Console.WriteLine($"\n Tags:");
     foreach (DetectedTag tag in result.Tags.Values)
     {
         Console.WriteLine($"   '{tag.Name}', Confidence: {tag.Confidence:P2}");
     }
}
  2. Save your changes (CTRL+S) and run the program with the argument images/street.jpg, observing that in addition to the image caption, a list of suggested tags is displayed.
  3. Rerun the program for the images/building.jpg and images/person.jpg files.

Add code to detect and locate objects

  1. In the code editor, in the AnalyzeImage function, find the comment Get objects in the image and add the following code to list the objects detected in the image, and call the provided function to annotate an image with the detected objects:

    Python

    # Get objects in the image
if result.objects is not None:
     print("\nObjects in image:")
     for detected_object in result.objects.list:
         # Print object tag and confidence
         print(" {} (confidence: {:.2f}%)".format(detected_object.tags[0].name, detected_object.tags[0].confidence * 100))
     # Annotate objects in the image
     show_objects(image_file, result.objects.list)

    C#

    // Get objects in the image
if (result.Objects.Values.Count > 0)
{
     Console.WriteLine("\nObjects:");
     foreach (DetectedObject detectedObject in result.Objects.Values)
     {
         // PPrint object tag and confidence
         Console.WriteLine($"  {detectedObject.Tags[0].Name} ({detectedObject.Tags[0].Confidence:P2})");
     }
     // Annotate objects in the image
     await ShowObjects(imageFile, result.Objects);

}
  2. Save your changes (CTRL+S) and run the program with the argument images/street.jpg, observing that in addition to the image caption and suggested tags; a file named objects.jpg is generated.

  3. Use the (Azure cloud shell-specific) download command to download the objects.jpg file:

    download objects.jpg

    The download command creates a popup link at the bottom right of your browser, which you can select to download and open the file. The image should look simlar to this:

    An image with object boundary boxes.

  4. Rerun the program for the images/building.jpg and images/person.jpg files, downloading the generated objects.jpg file after each run.

Add code to detect and locate people

  1. In the code editor, in the AnalyzeImage function, find the comment Get people in the image and add the following code to list any detected people with a confidence level of 20% or more, and call a provided function to annotate them in an image:

    Python

    # Get people in the image
if result.people is not None:
     print("\nPeople in image:")

     for detected_person in result.people.list:
         if detected_person.confidence > 0.2:
             # Print location and confidence of each person detected
             print(" {} (confidence: {:.2f}%)".format(detected_person.bounding_box, detected_person.confidence * 100))
     # Annotate people in the image
     show_people(image_file, result.people.list)

    C#

    // Get people in the image
if (result.People.Values.Count > 0)
{
     Console.WriteLine($" People:");

     foreach (DetectedPerson person in result.People.Values)
     {
         // Print location and confidence of each person detected
         if (person.Confidence > 0.2)
         {
             Console.WriteLine($"   Bounding box {person.BoundingBox}, Confidence: {person.Confidence:P2}");
         }
     }
     // Annotate people in the image
     await ShowPeople(imageFile, result.People);
}
  2. Save your changes (CTRL+S) and run the program with the argument images/street.jpg, observing that in addition to the image caption, suggested tags, and objects.jpg file; a list of person locations and file named people.jpg is generated.

  3. Use the (Azure cloud shell-specific) download command to download the objects.jpg file:

    download people.jpg

    The download command creates a popup link at the bottom right of your browser, which you can select to download and open the file. The image should look simlar to this:

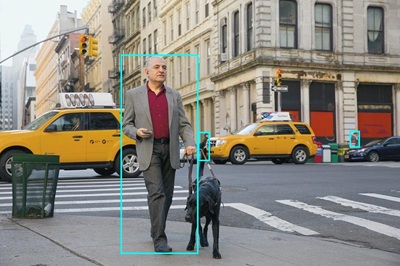

    An image with boundary boxes for detected people.

  4. Rerun the program for the images/building.jpg and images/person.jpg files, downloading the generated people.jpg file after each run.

Clean up resources

If you’ve finished exploring Azure AI Vision, you should delete the resources you have created in this exercise to avoid incurring unnecessary Azure costs:

  1. Open the Azure portal at https://portal.azure.com, and sign in using the Microsoft account associated with your Azure subscription.

  2. In the top search bar, search for Computer Vision, and select the Computer Vision resource you created in this lab.

  3. On the resource page, select Delete and follow the instructions to delete the resource.
