Generate images with AI

In this exercise, you use an image generation model to generate images. You also use the OpenAI Python SDK to create a simple app to generate images based on your prompts.

Note: This exercise is based on pre-release SDK software, which may be subject to change. Where necessary, we’ve used specific versions of packages; which may not reflect the latest available versions. You may experience some unexpected behavior, warnings, or errors.

While this exercise is based on the OpenAI Python SDK, you can develop AI chat applications using multiple language-specific SDKs; including:

This exercise takes approximately 30 minutes.

Prerequisites

Before starting this exercise, ensure you have:

An active Azure subscription
Visual Studio Code installed
Python version 3.13 or higher installed
Git installed and configured
Azure CLI installed

Create a Microsoft Foundry project

Microsoft Foundry uses projects to organize models, resources, data, and other assets used to develop an AI solution.

In a web browser, open the Microsoft Foundry portal at https://ai.azure.com and sign in using your Azure credentials. Close any tips or quick start panes that are opened the first time you sign in, and if necessary use the Foundry logo at the top left to navigate to the home page.
If it is not already enabled, in the tool bar the top of the page, enable the New Foundry option. Then, if prompted, create a new project with a unique name; expanding the Advanced options area to specify the following settings for your project:
- Foundry resource: Use the default name for your resource (usually {project_name}-resource)
- Subscription: Your Azure subscription
- Resource group: Create or select a resource group
- Region: Select any available region
Select Create. Wait for your project to be created.
On the home page for your project, note the project endpoint, key, and OpenAI endpoint.

TIP: You’re going to need the Azure OpenAI endpoint later!

Deploy a model

You’ll need a model that can generate images.

On the project home page, in the Start building menu, select Browse models to view the Microsoft Foundry model catalog.
Search for and deploy the FLUX.1-Kontext-pro model using the default settings. Deployment may take a minute or so.

After the model is deployed, the playground for the model is displayed.

TIP: Note the model deployment name (which by default should be FLUX.1-Kontext-pro) - you’ll need this later!

Test the model in the playground

Before creating a client application, let’s test the Flux model in the playground.

Select Playgrounds, and then Images playground.
Ensure your Flux model deployment is selected. Then, in the box near the bottom of the page, enter a prompt such as Create an image of an robot eating spaghetti and select Generate.

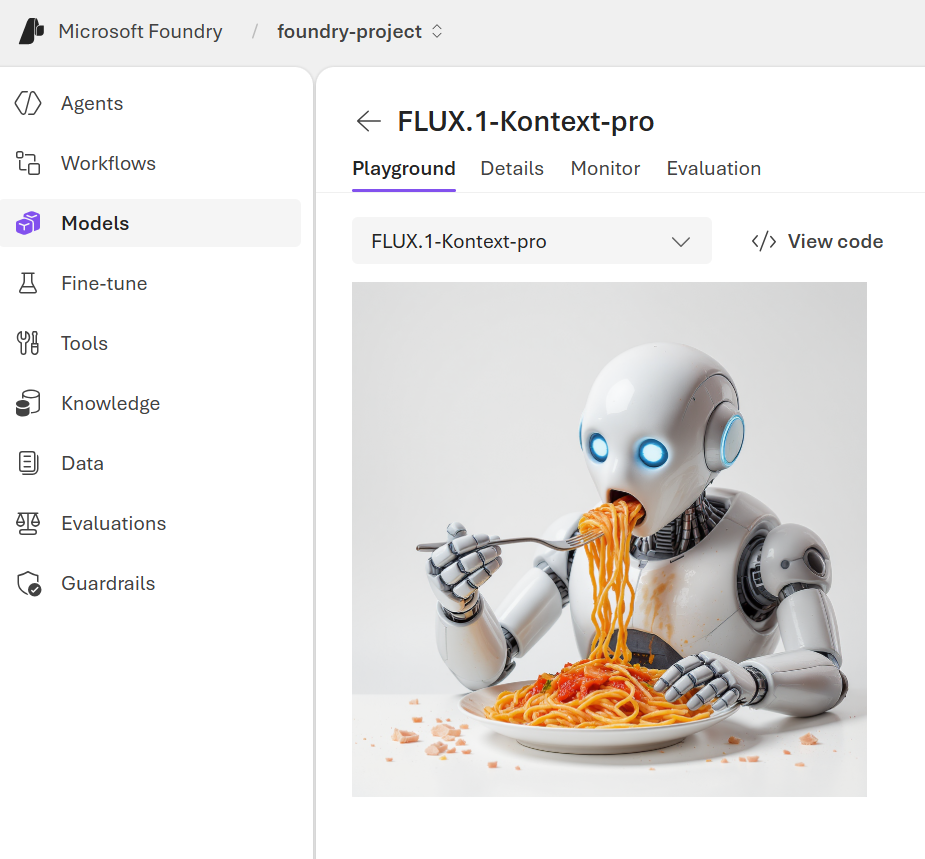

Review the resulting image in the playground:
Enter a follow-up prompt, such as Show the robot in a restaurant and review the resulting image.
Continue testing with new prompts to refine the image until you are happy with it.

Create a client application

Now you can use the OpenAI SDK to generate images in a client application.

Get application files from GitHub

The initial application files you’ll need to develop the translation application are provided in a GitHub repo.

Open Visual Studio Code.
Open the command palette (Ctrl+Shift+P) and use the Git:clone command to clone the https://github.com/microsoftlearning/mslearn-ai-vision repo to a local folder (it doesn’t matter which one). Then open it.

You may be prompted to confirm you trust the authors.
In Visual Studio Code, view the Extensions pane; and if it is not already installed, install the Python extension.
In the Command Palette, use the command python:select interpreter. Then select an existing environment if you have one, or create a new Venv environment based on your Python 3.1x installation.

Tip: If you are prompted to install dependencies, you can install the ones in the requirements.txt file in the /labfiles/image-client/python folder; but it’s OK if you don’t - we’ll install them later!

Tip: If you prefer to use the terminal, you can create your Venv environment with python -m venv labenv, then activate it with \labenv\Scripts\activate.

Prepare the application configuration

After the repo has been cloned, open the folder in VS Code (File > Open Folder), and navigate to the /labfiles/image-client/python folder.
In the VS Code Explorer pane, review the files in the folder:
- .env - A configuration file for application settings.
- image-client.py - The Python code file for the image application.
- requirements.txt - A file listing the package dependencies.
In the Explorer pane, in the python folder, select the .env file to open it. Then update the configuration values to include the Azure OpenAI endpoint for your Foundry resource, and the model deployment name for your image-generation model.

Important:Be sure to add the https://{foundry-resource-name}.openai.azure.com/openai/v1/ Azure openAI endpoint, not the project endpoint!

Save the modified configuration file.
In the Explorer pane, right-click the python folder containing the application files, and select Open in integrated terminal (or open a terminal in the Terminal menu and navigate to the /labfiles/image-client/python folder.)

Note: Opening the terminal in Visual Studio Code will automatically activate the Python environment. You may need to enable running scripts on your system.
Ensure that the terminal is open in the /labfiles/image-client/python* folder with the prefix (.venv) to indicate that the Python environment you created is active.
Install the required Python packages by running the following command:
```
 pip install -r requirements.txt
```

Write code to connect to your project and chat with your model

Tip: As you add code, be sure to maintain the correct indentation.

In VS Code, open the image-client.py file.
In the code file, note the existing statements that have been added at the top of the file to import the necessary SDK namespaces. Then, under the comment Add references, add the following code to reference the namespaces in the libraries you installed previously:
```
# Add references
from dotenv import load_dotenv
from azure.identity import DefaultAzureCredential, get_bearer_token_provider
from openai import OpenAI
import requests
import base64
```
In the main function, under the comment Get configuration settings, note that the code loads the endpoint and model deployment name values you defined in the configuration file.

Under the comment Initialize the client, add the following code to connect to your model using the Azure credentials you are currently signed in with:

# Initialize the client
token_provider = get_bearer_token_provider(
    DefaultAzureCredential(exclude_environment_credential=True,
        exclude_managed_identity_credential=True),
    "https://cognitiveservices.azure.com/.default"
)

client = OpenAI(
     base_url=endpoint,
     api_key=token_provider(),
 )

Note that the code includes a loop to allow a user to input a prompt until they enter “quit”. Then in the loop section, under the comment Generate an image, add the following code to submit the prompt and retrieve the data for the generated image from your model:

Python
```
# Generate an image
img = client.images.generate(
     model=model_deployment,
     prompt=input_text,
     n=1,
     size="1024x1024",
)
image_data = base64.b64decode(img.data[0].b64_json)
```
Note: The FLUX model returns the generated image as base64-encoded data in b64_json. The url field will be None for this model.
Note that the code in the remainder of the main function passes the image data and a filename to a provided function, which decodes and saves the generated image as a .png file.
Use the CTRL+S command to save your changes to the code file.

Run the client application

In the VS Code terminal, sign into Azure:
```
 az login
```
You must sign into Azure to authenticate with your Azure OpenAI resource.

Note: In most scenarios, just using az login will be sufficient. However, if you have subscriptions in multiple tenants, you may need to specify the tenant by using the –tenant parameter.
When prompted, follow the instructions to sign into your Azure subscription.
After you have signed in, run the application:
```
python image-client.py
```
When prompted, enter a request for an image, such as Create an image of a robot eating pizza.

After a moment or two, the app should confirm that the image has been saved. The image should appear in the images folder in your project directory with the name image_1.png.
Try a few more prompts. When you’re finished, enter quit to exit the program.

Note: In this simple app, we haven’t implemented logic to retain conversation history; so the model will treat each prompt as a new request with no context of the previous prompt.
Review the generated images in the images folder.

Summary

In this exercise, you used Microsoft Foundry and the Azure OpenAI SDK to create a client application uses a Flux model to generate images.

Clean up

If you’ve finished exploring Flux, you should delete the resources you have created in this exercise to avoid incurring unnecessary Azure costs.

Return to the browser tab containing the Azure portal (or re-open the Azure portal at https://portal.azure.com in a new browser tab) and view the contents of the resource group where you deployed the resources used in this exercise.
On the toolbar, select Delete resource group.
Enter the resource group name and confirm that you want to delete it.
