Build a Semantic Kernel object

In this exercise, you create an Azure OpenAI resource and provide the deployment information to the Semantic Kernel. The Semantic Kernel will connect to the endpoint and allow you to run prompts to the large language model (LLM) directly from your code. Let’s get started!

This exercise takes approximately 10 minutes to complete.

Deploy a chat completion model

  1. In a web browser, open the Azure AI Foundry portal at https://ai.azure.com and sign in using your Azure credentials. Close any tips or quick start panes that are opened the first time you sign in, and if necessary use the Azure AI Foundry logo at the top left to navigate to the home page, which looks similar to the following image (close the Help pane if it’s open):

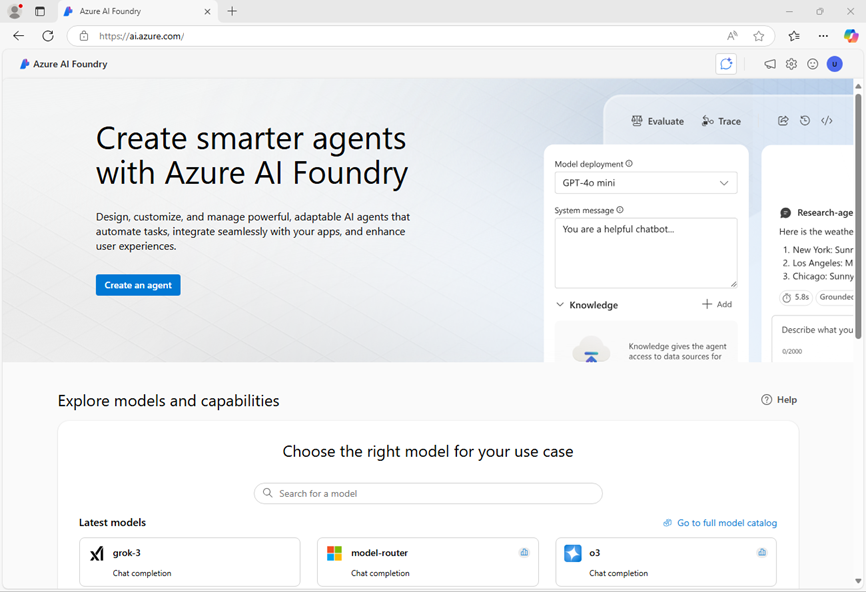

    Screenshot of Azure AI Foundry portal.

  2. In the home page, in the Explore models and capabilities section, search for the gpt-4o model; which we’ll use in our project.
  3. In the search results, select the gpt-4o model to see its details, and then at the top of the page for the model, select Use this model.
  4. When prompted to create a project, enter a valid name for your project and expand Advanced options.
  5. Select Customize and specify the following settings for your hub:
    • Azure AI Foundry resource: A valid name for your Azure AI Foundry resource
    • Subscription: Your Azure subscription
    • Resource group: Create or select a resource group
    • Region: Select any AI Services supported location*

    * Some Azure AI resources are constrained by regional model quotas. In the event of a quota limit being exceeded later in the exercise, there’s a possibility you may need to create another resource in a different region.

  6. Select Create and wait for your project, including the gpt-4o model deployment you selected, to be created.
  7. When your project is created, the chat playground will be opened automatically.

  8. In the navigation pane on the left, select Overview to see the main page for your project; which looks like this:

    Note: If an *Insufficient permissions** error is displayed, use the Fix me button to resolve it.

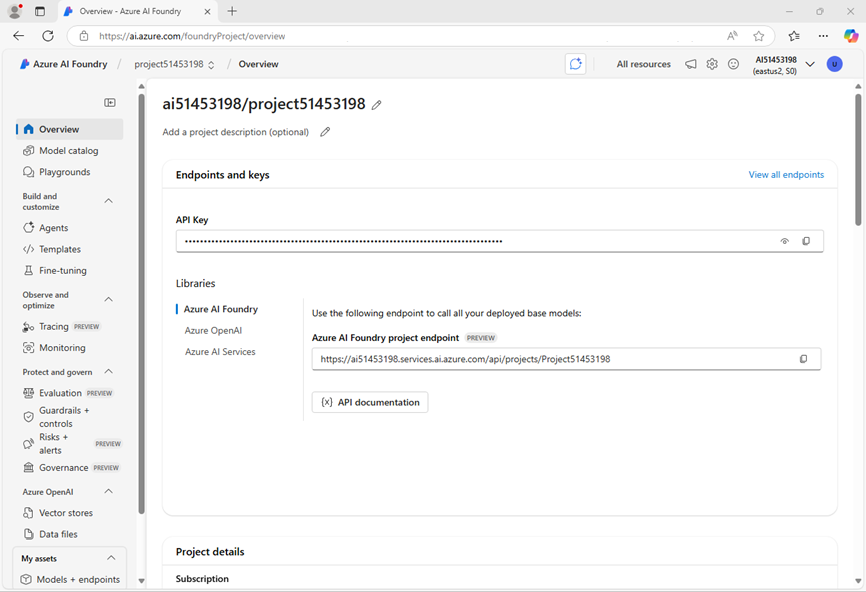

    Screenshot of a Azure AI Foundry project overview page.

  9. Under the Libraries section of the overview page, select Azure OpenAI

    You’ll use the data here in the next task to build your kernel. Remember to keep your keys private and secure!

Create a Semantic Kernel client application

Now that you deployed a model, you can use the Semantic Kernel SDK to create a client application that chats with it. Let’s get started!

Configure your application

  1. Open a new browser tab (keeping the Azure AI Foundry portal open in the existing tab). Then in the new tab, browse to the Azure portal at https://portal.azure.com; signing in with your Azure credentials if prompted.

    Close any welcome notifications to see the Azure portal home page.

  2. Use the [>_] button to the right of the search bar at the top of the page to create a new Cloud Shell in the Azure portal, selecting a PowerShell environment with no storage in your subscription.

    The cloud shell provides a command-line interface in a pane at the bottom of the Azure portal. You can resize or maximize this pane to make it easier to work in.

    Note: If you have previously created a cloud shell that uses a Bash environment, switch it to PowerShell.

  3. In the cloud shell toolbar, in the Settings menu, select Go to Classic version (this is required to use the code editor).

    Ensure you've switched to the classic version of the cloud shell before continuing.

  4. In the cloud shell pane, enter the following commands to clone the GitHub repo containing the code files for this exercise (type the command, or copy it to the clipboard and then right-click in the command line and paste as plain text):

     rm -r mslearn-ai-semantic-kernel -f
 git clone https://github.com/MicrosoftLearning/mslearn-ai-semantic-kernel mslearn-ai-semantic-kernel

    Tip: As you paste commands into the cloudshell, the output may take up a large amount of the screen buffer. You can clear the screen by entering the cls command to make it easier to focus on each task.

  5. After the repo has been cloned, navigate to the folder containing the application code files:

    Note: Follow the steps for your chosen programming language.

    Python

     cd mslearn-ai-semantic-kernel/Labfiles/01-build-your-kernel/Python

    C#

     cd mslearn-ai-semantic-kernel/Labfiles/01-build-your-kernel/C-sharp

  6. In the cloud shell command-line pane, enter the following command to install the libraries you’ll use:

    Python

     python -m venv labenv
 ./labenv/bin/Activate.ps1
 pip install python-dotenv semantic-kernel[azure]

    C#

     dotnet add package Microsoft.SemanticKernel

  7. Enter the following command to edit the configuration file that has been provided:

    Python

     code .env

    C#

     code appsettings.json

    The file should open in a code editor.

  8. In the code file, replace the your_project_endpoint and your_project_api_key placeholders with the Azure OpenAI endpoint and API key for your project (copied from the project Overview page in the Azure AI Foundry portal), and replace the your_deployment_name placeholder with the name you assigned to your gpt-4o model.

  9. After you replace the placeholders, in the code editor, use the CTRL+S command or Right-click > Save to save your changes and then use the CTRL+Q command or Right-click > Quit to close the code editor while keeping the cloud shell command line open.

Run a prompt with Semantic Kernel

  1. Enter the following commands to edit the code file:

    Python

     code kernel.py

    C#

     code Program.cs

  2. Under the comment Import namespaces, add the following language-specific code to import the namespaces you’ll need to use the Semantic Kernel SDK.

    Python

     # Import namespaces
 from semantic_kernel import Kernel
 from semantic_kernel.connectors.ai.open_ai import AzureChatCompletion
 from semantic_kernel.functions.kernel_arguments import KernelArguments

    C#

     using Microsoft.SemanticKernel;

  3. Add the following code under the comment Create a kernel with Azure OpenAI chat completion:

    Python

     # Create a kernel with Azure OpenAI chat completion
 kernel = Kernel()
 chat_completion = AzureChatCompletion(
     api_key=api_key,
     endpoint=endpoint,
     deployment_name=deployment_name
 )
 kernel.add_service(chat_completion)

    C#

     // Create a kernel with Azure OpenAI chat completion
 var builder = Kernel.CreateBuilder().AddAzureOpenAIChatCompletion(deploymentName, endpoint, apiKey);
 Kernel kernel = builder.Build();

  4. To test that your kernel and endpoint is working, enter the following code under the comment Test the chat completion service:

    Python

     # Test the chat completion service
 response = await kernel.invoke_prompt(
     "Give me a list of 10 breakfast foods with eggs and cheese",
     KernelArguments())
 print("Assistant > " + str(response))

    C#

     // Test the chat completion service
 var result = await kernel.InvokePromptAsync("Give me a list of 10 breakfast foods with eggs and cheese");
 Console.WriteLine(result);

  5. After you’ve updated the code, use the CTRL+S command to save your changes.

  6. Use the CTRL+Q command to close the code editor.

  7. Run the code using the following command:

    Python

     python kernel.py

    C#

     dotnet run

  8. Check that you see a response similar to the following:

     Certainly! Here's a list of popular breakfast foods that incorporate eggs and cheese:

 1. Omelette
 2. Frittata
 3. Breakfast burrito
 4. Scrambled eggs with cheese
 5. Quiche
 6. Huevos rancheros
 7. Cheese and egg sandwich
 8. Egg and cheese bagel
 9. Egg and cheese croissant
 10. Baked eggs with cheese

    The response comes from the Azure OpenAI model you passed to the kernel. The Semantic Kernel SDK is able to connect to the large language model (LLM) and run the prompt. Notice how quickly you were able to receive responses from the LLM. The Semantic Kernel SDK makes building smart applications easy and efficient.

Summary

In this lab, you created an endpoint for the large language model (LLM) service, built a Semantic Kernel object, and ran a prompt using the Semantic Kernel SDK. Congratulations on completing this exercise!

Clean up

If you’ve finished exploring Azure OpenAI and Semantic Kernel, you should delete the resources you have created in this exercise to avoid incurring unnecessary Azure costs.

  1. Return to the browser tab containing the Azure portal (or re-open the Azure portal at https://portal.azure.com in a new browser tab) and view the contents of the resource group where you deployed the resources used in this exercise.
  2. On the toolbar, select Delete resource group.
  3. Enter the resource group name and confirm that you want to delete it.
