🚀 Quick Deployment Guide - Non-Production

This guide provides the fastest path to deploying AI Citadel Governance Hub for development and testing environments. For production deployments, see the Full Deployment Guide.

⚡ Prerequisites

Required:

• Azure subscription with Contributor or Owner permissions
• Azure Developer CLI (azd) installed
• Azure CLI installed

Optional:

• VS Code with Bicep extension
• Git for version control

💡 Tip: You can use Azure Cloud Shell which has all tools pre-installed.

🎯 Deployment Options

Getting the template

First, initialize your local project in an empty folder (e.g. ai-hub-citadel-deployment):

azd init --template Azure-Samples/ai-hub-gateway-solution-accelerator -e ai-hub-citadel-dev --branch citadel-v1

# or use git clone:
# git clone https://github.com/Azure-Samples/ai-hub-gateway-solution-accelerator.git
# git checkout citadel-v1

# Make the repository your current directory:
cd ai-hub-citadel-deployment # it may differ if you used git clone

Then proceed to choose your deployment method:

Option 1: Default Quick Deploy (Recommended)

Deploy with minimal configuration using intelligent defaults:

# Authenticate to Azure
# append --tenant-id <your-tenant-id> if needed
azd auth login

# Initialize environment
azd env new ai-hub-citadel-dev-01

# Provision and deploy everything based on defaults
azd up

This will:

• ✅ Create a new resource group
• ✅ Deploy all infrastructure with default settings
• ✅ Create new Virtual Network with private endpoints
• ✅ Create new Log Analytics workspace
• ✅ Deploy 2 AI Foundry instances with sample models
• ✅ Enable all core features (PII detection, content safety, API Center)

Expected deployment time: 30-45 minutes

Option 2: Customized Quick Deploy

Customize key settings using environment variables:

# Authenticate and initialize
azd auth login
azd env new ai-hub-citadel-dev

# Set custom environment variables
azd env set AZURE_LOCATION eastus2
azd env set APIM_SKU Developer

# Deploy
azd up

Common Environment Variables

For full list of variables, see /bicep/infra/main.bicepparam.

Option 3: Parameter File Deploy

Use the pre-configured dev parameter file:

# Authenticate
azd auth login

# Deploy using parameter file
az deployment sub create \
  --name citadel-dev-deployment \
  --location eastus \
  --template-file ./bicep/infra/main.bicep \
  --parameters ./bicep/infra/main.parameters.dev.bicepparam

The main.parameters.dev.bicepparam file includes:

• Developer SKU for cost savings
• Minimal capacity settings
• Public network access enabled (easier development)
• Application Insights dashboards enabled
• API Center disabled (reduce costs)

🔧 Post-Deployment Configuration

1. Verify Deployment

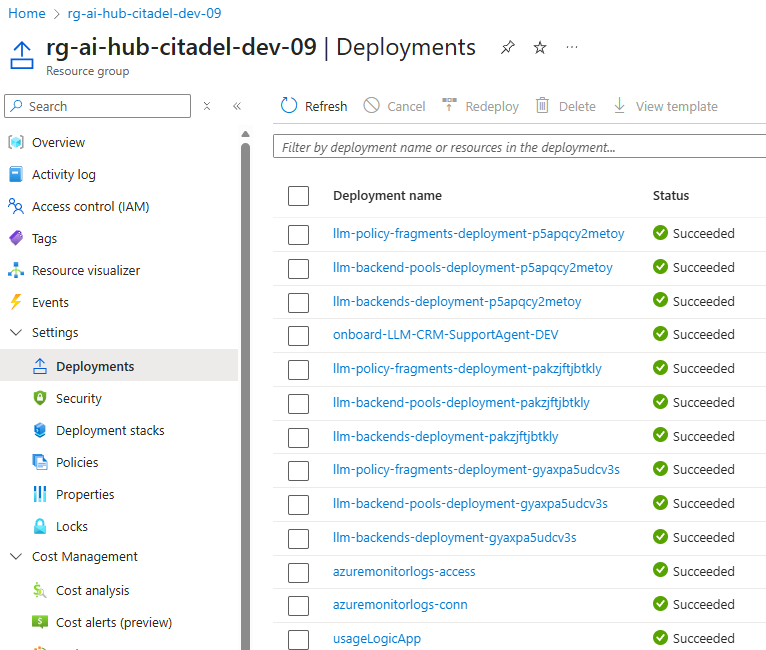

Deployment state are visible under Deployments in used resource group in the Azure Portal.

Also you can retrieve key information via AZD CLI:

# Get deployment outputs
azd env get-values

2. 🧪 Access AI Citadel Governance Hub

Head to validation part of this template to run through various validation and activities related to using Citadel Governance Hub.

📊 Monitor Your Deployment

Application Insights

1. Navigate to Azure Portal
2. Find Application Insights associated with APIM resource (name: appi-apim-*)
3. View:
   • Live Metrics
   • Application Map
   • Failures
   • Performance

Usage Analytics

1. Navigate to Cosmos DB resource
2. Open Data Explorer
3. Query usage-db database, usage container

SELECT * FROM c
WHERE c._ts > (GetCurrentTimestamp()/1000 - 3600)
ORDER BY c._ts DESC

🧹 Clean Up

Remove All Resources

# Delete all deployed resources
azd down --purge

🚨 Troubleshooting

Deployment Fails

Check provider registration:

az provider register --namespace Microsoft.ApiManagement
az provider register --namespace Microsoft.CognitiveServices
az provider register --namespace Microsoft.DocumentDB
az provider register --namespace Microsoft.EventHub
az provider register --namespace Microsoft.Insights
az provider register --namespace Microsoft.Logic

Check quota limits:

If you got quota errors, check your subscription limits.

APIM Takes Too Long

API Management deployment can take 30-45 minutes in classic tiers (Developer and Premium). This is normal.

⚙️ Default Configuration

The quick deployment uses these defaults (from main.bicepparam):

📚 Next Steps

For Development:

• ✅ Access LLMs via AI Citadel Governance Hub - Notebook
• ✅ Onboard existing LLMs

For Production:

• 📘 Full Deployment Guide

💡 Pro Tips

1. Use Azure Cloud Shell - No local setup required
2. Start Small - Use Developer SKU and minimal capacity

Need Help?

• GitHub Issues
