Explore a simple AI agent

In this exercise, you’ll use a simple AI agent named Ask Andrew to chat about AI concepts. The goal of this exercise is not to learn how to build an AI agent, but to familiarize yourself with some common features of AI solutions - in particular AI agents that support chat-based interactivity.

This exercise should take approximately 15 minutes to complete.

Open the Ask Andrew AI agent

Ask Andrew is a simple example of an AI agent that provides a chat interface for learning about AI concepts.

Note: Ask Andrew is provided solely as a simple example of a chat-based agent for this exercise. It is not a component of the Microsoft Learn or AI Skills Navigator platform, nor is it a supported Microsoft product or service. The agent uses a small language model to interpret and respond to prompts. The model runs in your browser, on your local computer; so performance may vary depending on the available memory in your computer and your network bandwidth to download the model. If GPU-based WebLLM models are not supported in your browser, a fallback CPU-based model is used; which may be considerably slower and generate lower quality responses. After opening the app, use the About button in the chat area to find out more.

  1. In a web browser, open the Ask Andrew at https://aka.ms/ask-andrew.

  2. Wait for the model to download and initialize.

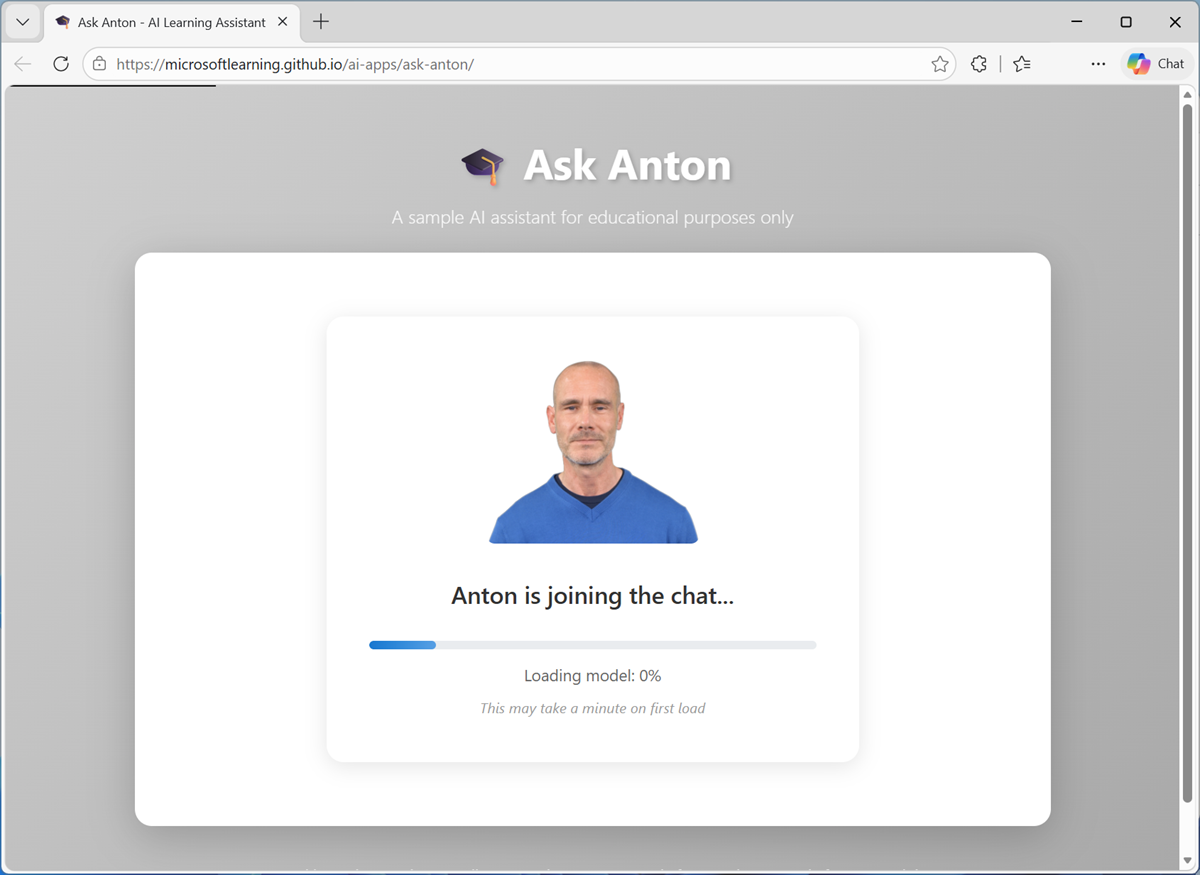

    Screenshot of the Ask Andrew loading page.

    The first time you download a model, it will take several minutes. Subsequent downloads will be faster.

    Tip: If the GPU-based model fails to load, the app will fallback to CPU mode. This may happen if your computer does not have a GPU, or if WebGPU support is disabled in your browser. When using an ARM64 based computer, you may need to enable WebGPU support in your browser’s edge://flags or chrome://flags page and restart the browser. If you choose to do so, disable it again when you have completed the exercise.

Chat with the model

  1. When the model is ready, use the chat interface to enter questions related to AI concepts; and review the responses returned by the agent.

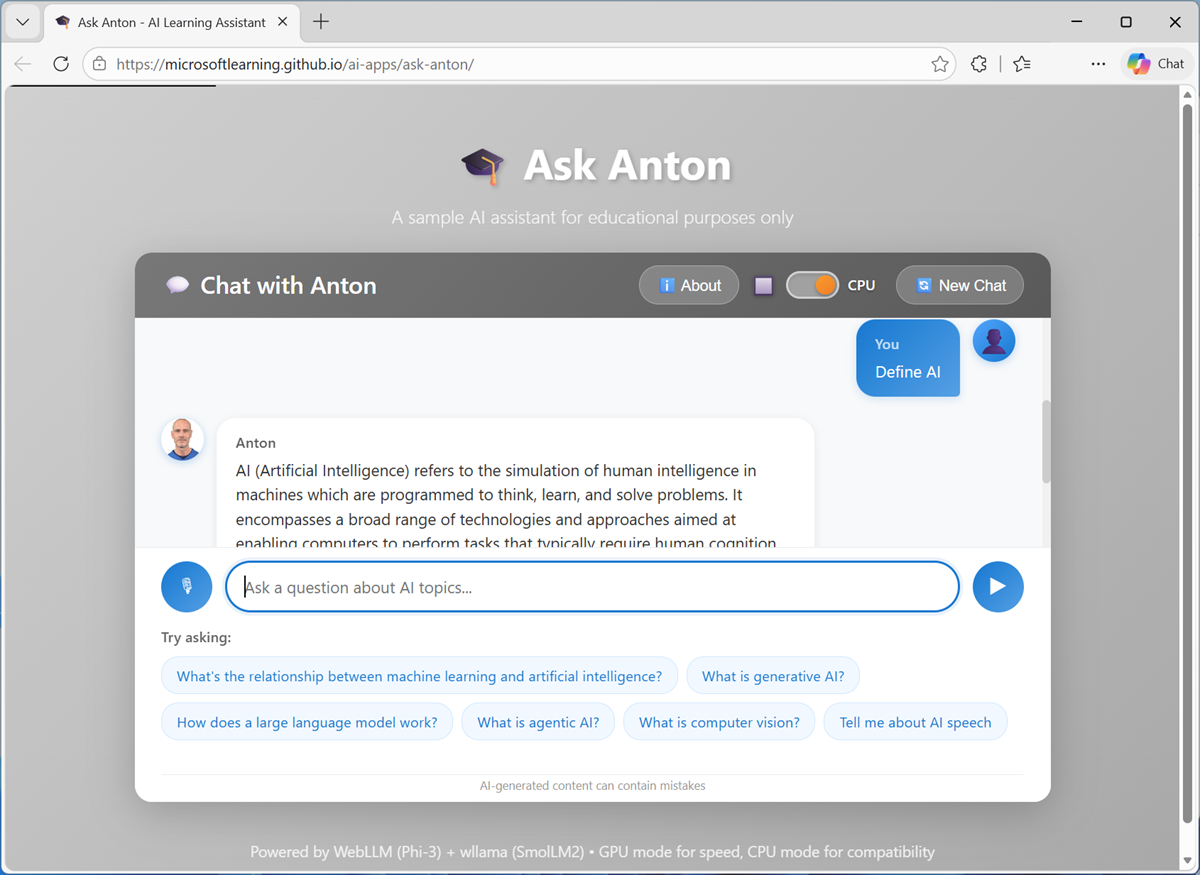

    Screenshot of the Ask Andrew chat interface.

  2. Continue to chat with the agent, bearing in mind the following guidelines:

    • You can use the built-in sample prompts or enter your own in the chat box.
    • You can use the Voice input button to talk to the agent instead of typing (if supported by your browser).
    • You can use the links after each response to learn more.
    • Responses may be slow - particularly in CPU mode. You can stop a response generation at any point.
    • When using GPU mode, you can use follow-up questions - the model will “remember” the conversation context. In CPU mode, each prompt creates a new interaction.
    • Responses from AI may not always be accurate. In this application, the responses are grounded in a knowledge base; but generative AI can still make mistakes.

Understand the architecture

So how does Ask Andrew work?

At a high-level, the process can be broken down into six steps.

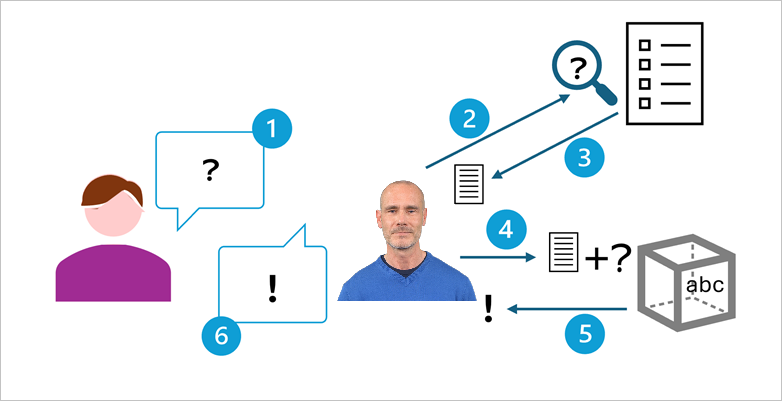

Diagram of the high-level Ask Andrew architecture.

  1. You submit a question in the form of a prompt.
  2. The app extracts keywords from your prompt and uses them to query a knowledge base. The knowledge base for this app is stored in a file named index.json, loaded locally in your browser. More scalable, production-ready agents tend to have more comprehensive knowledge stores!
  3. The query returns text from the knowledge store that provides contextual information that will help answer the question you asked.
  4. The agent submits a message to the language model. The message consists of:
    • A system prompt containing instructions for how the model should format its response.
    • The contextual information returned by the query.
    • Your original question.
  5. The language model generates an answer to your question, using the contextual information from the knowledge store to ground its response.
  6. The agent responds to the chat conversation with the response.

This architecture reflects how many production-level AI agents are designed. It’s based on a general pattern referred to as retrieval-augmented generation (RAG) in which the agent retrieves contextual information from a knowledge store, uses it to augment the original user prompt, which is sent to a language model to generate a response.

Summary

In this exercise, you explored a sample AI agent. The agent’s functionality is limited, and does not reflect the kind of performance or capabilities you can expect in a production quality agent; but it should serve to show a simple example of how AI can support chat-based interactions.
