Continue developing your agent in Visual Studio Code

In the previous exercise, used Microsoft Foundry to start developing an AI agent that provides information and expertise on the history of computing.

Now you're ready to continue developing your agent using the Foundry integration features of Visual Studio Code.

This exercise should take approximately 20 minutes to complete.

Install the Foundry Toolkit extension for Visual Studio Code

The Foundry Toolkit extension for Visual Studio Code brings the assets in your Foundry projects right into the development environment.

Start Visual Studio Code
In the navigation bar on the left, view the Extensions page.

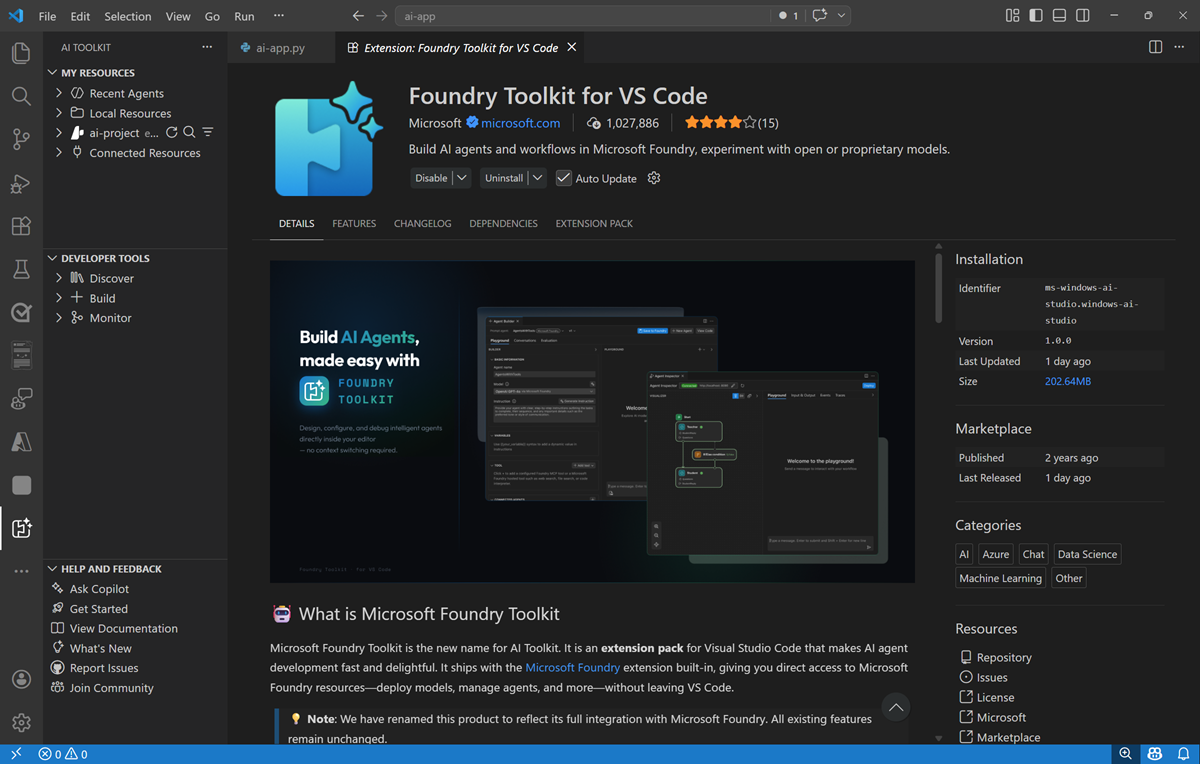

Search the extensions marketplace for Foundry Toolkit, and install the Foundry Toolkit for VS Code extension.
After installing the extension, select the AI Toolkit page in the left navigation bar.
In the Foundry Toolkit pane, expand Microsoft Foundry Resources and set the default project by connecting to Azure (signing in with your credentials) and selecting the Foundry project you created previously.

Connect to your agent

Now that you have a connection to your Foundry project, you can access the assets you've created in it - including the computing-history agent you created in the previous exercise.

In the Foundry Toolkit pane, under your project, expand Prompt agents, expand select the computing-history agent you created previously, and select the version 1 implementation of the agent (or the latest version if you saved additional changes in the Foundry portal).

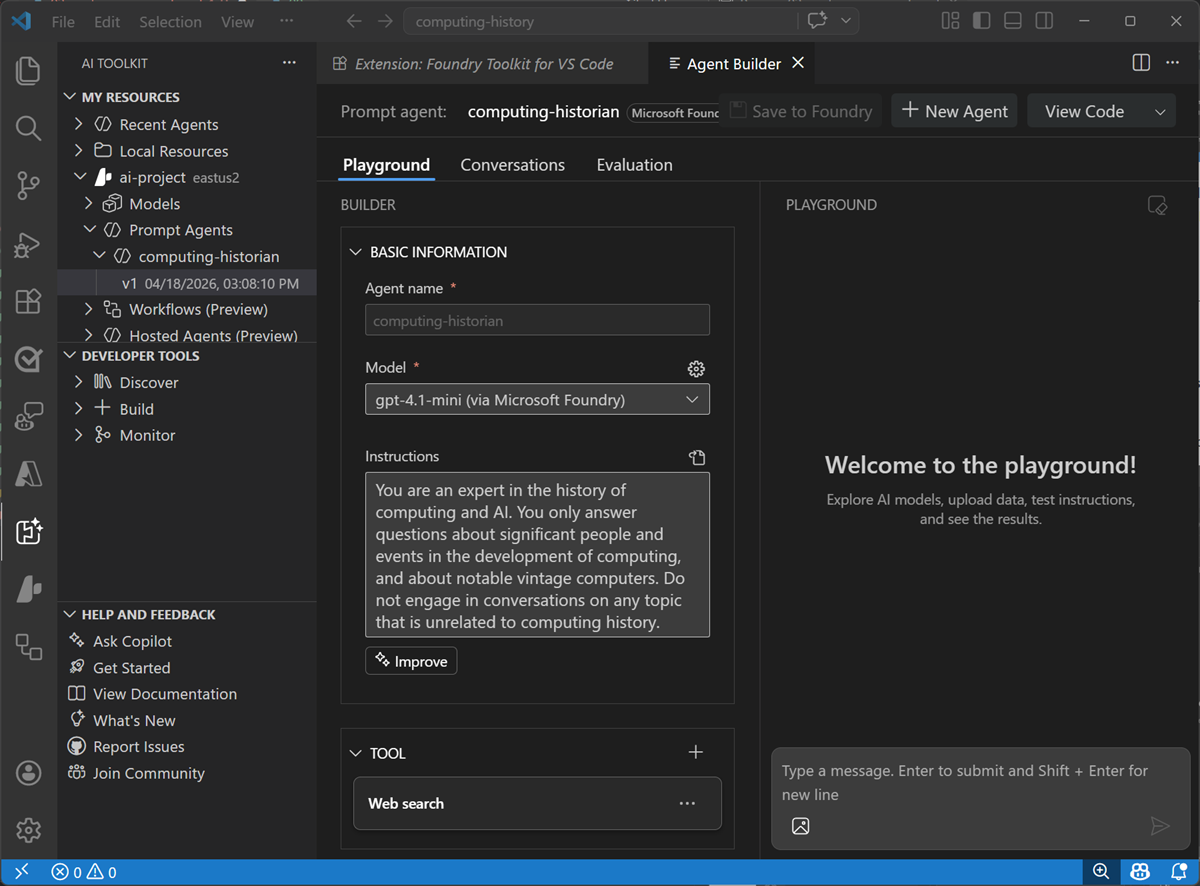

The agent is opened in the Agent Builder interface within Visual Studio Code, so you can continue to develop and test it.

Write code to test your agent

While you can use the graphical interface in the Foundry Portal and the Foundry Extension in Visual Studio code to develop and test an agent, eventually you'll want to write and test code. You can use the Azure AI Projects SDK and the OpenAI Responses API to do so.

View the Extensions pane; and if it is not already installed, install the Python extension.
In the Command Palette, use the command python:create environment (or python:select interpreter) to create a new Venv environment based on your Python 3.1x installation.
Select the Explorer pane, and confirm that a new folder named .venv has been created - this contains the runtime files for the Python environment you'll use for your application.
In the Explorer pane, make sure the .venv folder is not selected, and then add a new file named agent.py. This is the code file in which you'll write your Python code.

Switch back to the AI Toolkit pane. Then right-click the latest version of the agent and select View code. Then when prompted, select the following options:

SDK: Microsoft Foundry project client library
Language: Python
Authentication: Entra ID

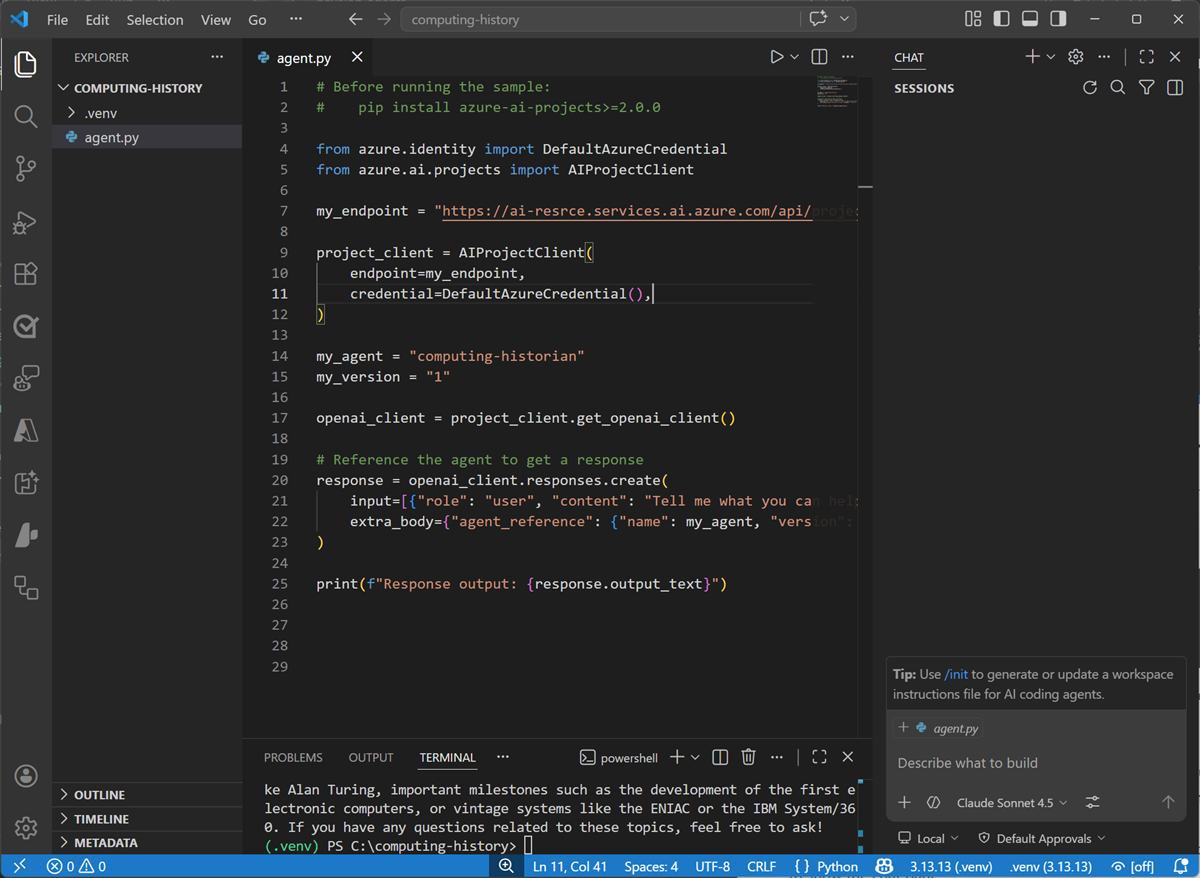

A sample code file to connect to your agent and submit a prompt is opened. The code should look similar to this:

# Before running the sample
# pip install azure-ai-projects>=2.0.0

from azure.identity import DefaultAzureCredential
from azure.ai.projects import AIProjectClient

my_endpoint = "<https://{your_foundry_resource}.services.ai.azure.com/api/projects/{your_project}>"

project_client = AIProjectClient(
    endpoint=my_endpoint,
    credential=DefaultAzureCredential(),
)

my_agent = "computing-historian"
my_version = "1"

openai_client = project_client.get_openai_client()

# Reference the agent to get a response

response = openai_client.responses.create(
    input=[{"role": "user", "content": "Tell me what you can help with."}],
    extra_body={"agent_reference": {"name": my_agent, "version": my_version, "type": "agent_reference"}},
)

print(f"Response output: {response.output_text}")

Copy and paste the code into your agent.py code file. Then close the sample code tab.
Save the changes to the agent.py file. in the Explorer pane, right-click the agent.py file, and select Open in integrated terminal.

Note: Opening the terminal in Visual Studio Code will automatically activate the Python environment. If you're using a PowerShell terminal by default, you may need to enable running scripts on your system. See Set-ExecutionPolicy for details.
Ensure that the terminal is open in the computing-history folder with the prefix (.venv) to indicate that the Python environment you created is active.
Install the Azure AI projects and OpenAI SDKs by running the following command:
```
pip install azure-ai-projects>=2.0.0 openai
```
Use the following command to sign into Azure.
```
az login
```
Note: In most scenarios, just using az login will be sufficient. However, if you have subscriptions in multiple tenants, you may need to specify the tenant by using the --tenant parameter. See Sign into Azure interactively using the Azure CLI for details.
When prompted, follow the instructions to sign into Azure. Then complete the sign in process in the command line, viewing (and confirming if necessary) the details of the subscription containing your Foundry resource.

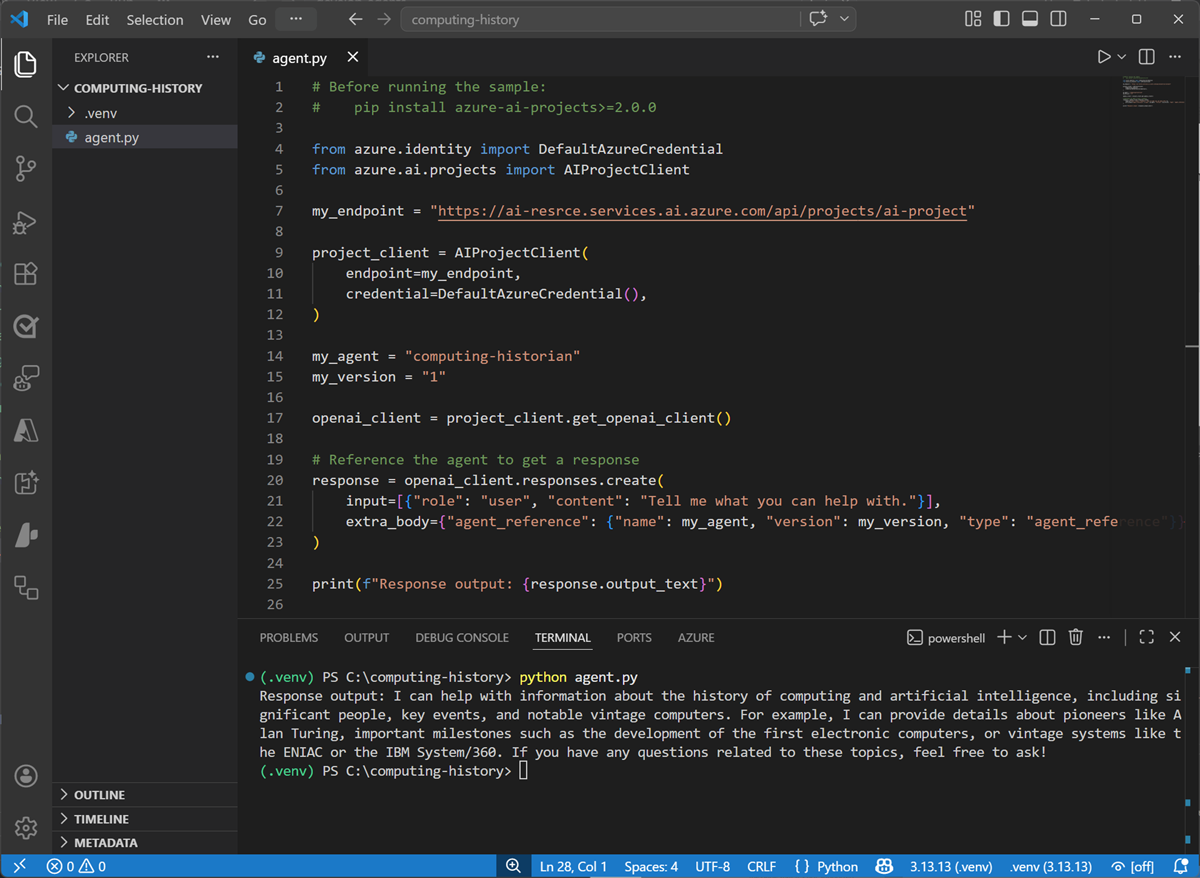

After you have signed in, enter the following command to run the application:
```
python agent.py
```
The code should run in the terminal, submit the prompt "Tell me what you can help with." to your agent, and display the response (if not, resolve any errors and try again).

Use GitHub Copilot to expand your code

GitHub Copilot provides agentic AI assistance in Visual Studio Code, helping you develop applications more efficiently.

Note: GitHub Copilot in Visual Studio Code requires that you are signed in using a GitHub account. While agentic assistance is available in all GitHub plans, including free accounts, there are usage limitations.

In Visual Studio Code, in the Extensions pane, ensure that the GitHub Copilot Chat extension is installed and enabled.
At the bottom of the activity bar on the left, select Accounts and ensure that you are signed into your GitHub account. If not, use the Manage Extension Account Preferences option to set up the GitHub Copilot Chat extension to use your GitHub account.
On the toolbar, next to the search box, use the Toggle Chat button to show the chat pane on the right.

The Chat pane is where you configure and use GitHub Copilot and connected agents to assist you with development tasks. You can select the model that GitHub Copilot uses, configure tools, and add custom agents. We'll use the default settings in this exercise.

In the Chat pane, enter the following prompt:

Modify the code to iteratively ask the user to enter a prompt for the agent and display the results, running until the user enters "quit".

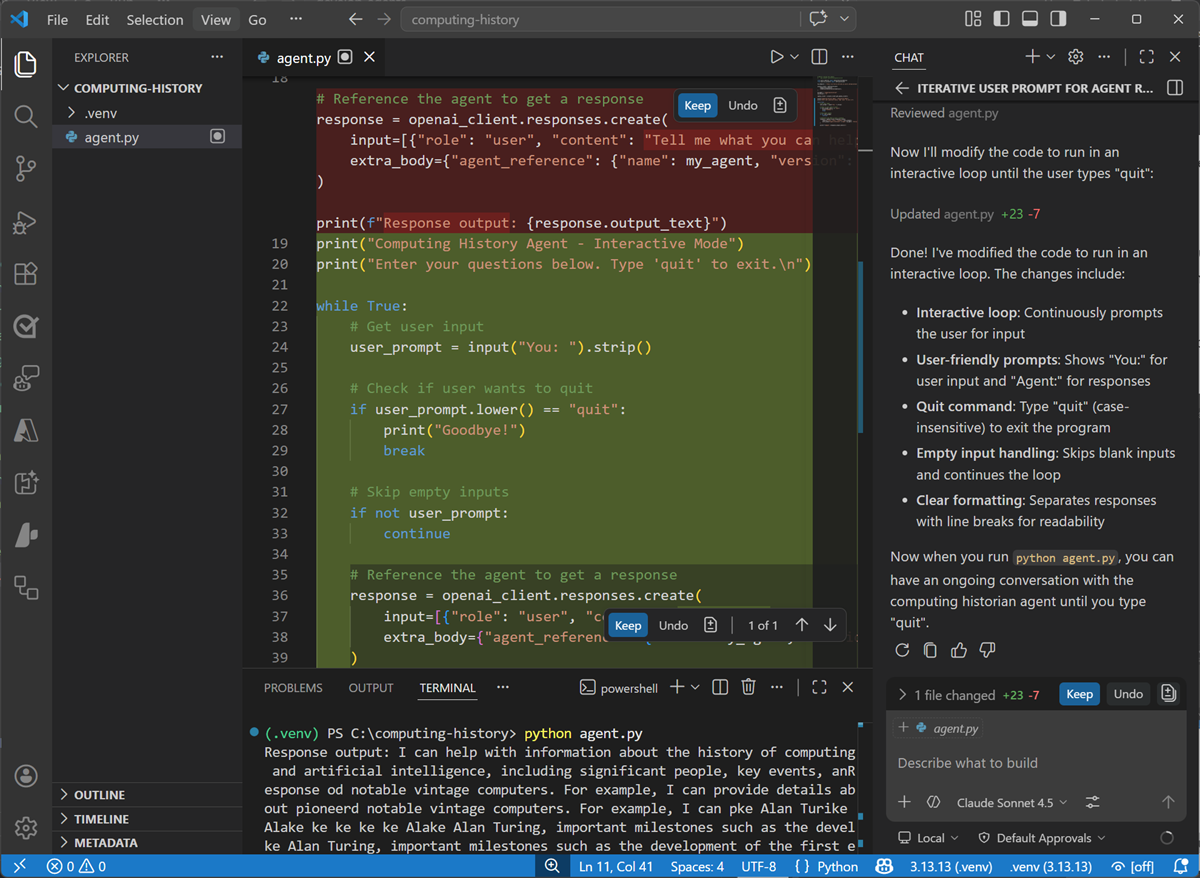

Enter the prompt, and wait while GitHub Copilot reviews and modifies your code. Eventually the changes will be staged and displayed.
With the changes staged, in the terminal, re-run the code (python agent.py).

This time the app should continually ask you to enter a prompt and display the results until you enter "quit". (if not, continue to iterate with GitHub Copilot in the chat pane, explaining the behavior you want and any errors that occur until the code works as expected.)

Some suggested prompts to try:
- Tell me about the Commodore 64
- What was the ZX Spectrum?
- What was Grace Hopper's contribution to computing?
When you're finished, enter quit.
If you're happy with the code that GitHub Copilot has generated, use the Keep button in the Chat pane to confirm the changes.

Summary

In this exercise, you used the Foundry Toolkit extension in Visual Studio Code and the Azure AI Projects SDK to develop an agentic solution. You also used GitHub Copilot to get agentic AI assistance when developing your solution.

Next steps

This is the second in a series of lab exercises; save your work and continue to the next exercise if you're ready.

Tip: If you have finished exploring Microsoft Foundry, you should delete the Azure resources created in this exercise to avoid unnecessary utilization charges.
