Secure data access in Power BI

Lab story

In this lab, you’ll enforce row-level security to ensure that a salesperson can only analyze sales data for their assigned region(s). You will enforce row-level security using dynamic method.

This lab should take approximately 20 minutes.

Get started

To complete this exercise, first open a web browser and enter the following URL to download the zip folder:

https://github.com/MicrosoftLearning/PL-300-Microsoft-Power-BI-Data-Analyst/raw/Main/Allfiles/Labs/11-secure-data-access/11-secure-data.zip

Extract the folder to the C:\Users\Student\Downloads\11-secure-data folder.

Open the 11-Starter-Sales Analysis.pbix file.

Note: You may see a sign-in dialog as the file loads. Select Cancel to dismiss the sign-in dialog. Close any other informational windows. Select Apply Later, if prompted to apply changes.

Enforce row-level security

In this task, you’ll enforce row-level security to ensure a salesperson can only see sales made in their assigned region(s).

Switch to Table view.
In the Data pane, select the Salesperson (Performance) table.
Review the data, noticing that Michael Blythe (EmployeeKey 281) has a UPN value of: michael-blythe@adventureworks.com

You may recall that Michael Blythe is assigned to three sales regions: US Northeast, US Central, and US Southeast.
On the Home ribbon tab, from inside the Security group, select Manage Roles.
In the Manage security roles window, in the Roles section, select New.
In the box, replace the selected text with the name of the role: Salespeople, and then press Enter.

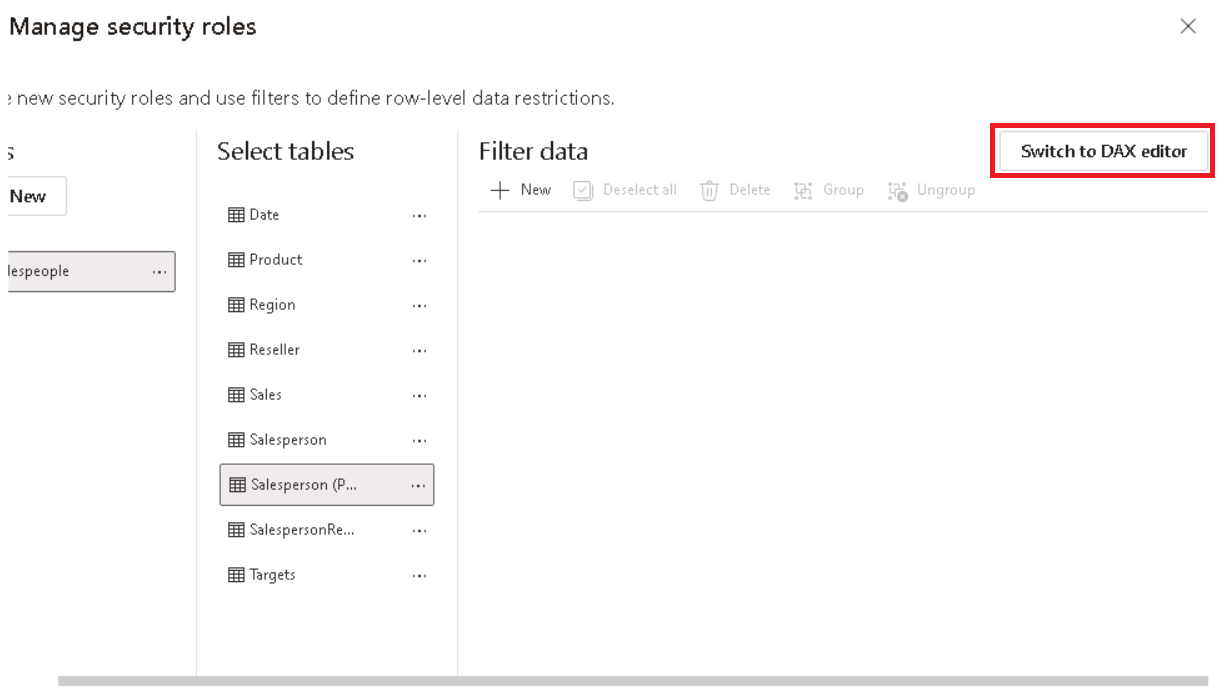

To assign a filter, select the Salesperson (Performance) table, and then select Switch to DAX editor in the Filter data section.
In the DAX editor box, enter the following expression:
```
 [UPN] = USERPRINCIPALNAME()
```
USERPRINCIPALNAME() is a Data Analysis Expressions (DAX) function that returns the name of the authenticated user. It means that the Salesperson (Performance) table will filter by the User Principal Name (UPN) of the user querying the model.
Select Save and Close.
To test the security role, on the Home ribbon tab, from inside the Security group, select View As.

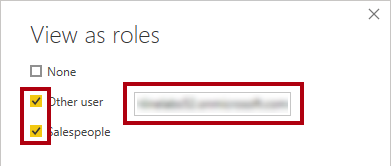

In the View as Roles window, check the Other User item, and then in the corresponding box, enter: michael-blythe@adventureworks.com
Check the Salespeople role, and then OK.

This configuration results in using the Salespeople role and impersonating the user with your Michael Blythe’s name.
Notice the yellow banner above the report page, describing the test security context.

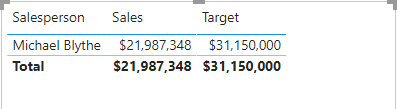

In the table visual, notice that only the salesperson Michael Blythe is listed.
To stop testing, at the right side of the yellow banner, select Stop Viewing.
To delete the Salespeople role, on the Home ribbon tab, from inside the Security group, select Manage Roles.

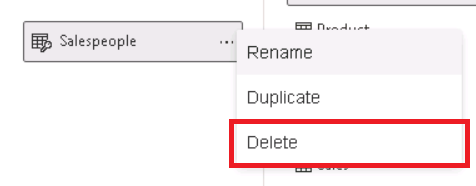

In the Manage security roles window, select the ellipsis (…) on the Salespeople role, and select Delete. When prompted to confirm the deletion, select Yes, Delete.

Note: When the Power BI Desktop file is published to the Power BI service, you’ll need to complete a post-publication task to map security principals to the Salespeople role. You won’t do that in this lab.

Lab complete

You may choose to save your Power BI report, though it’s not necessary for this lab.

Close the Microsoft Edge browser window.
In Power BI Desktop, navigate to the “File” menu in the top left corner and select “Save As”.
Select Browse this device.
Select the folder where you want to save the file and give it a descriptive name.
Select the Save button to save your report as a .pbix file.
If a dialog box appears prompting you to apply pending query changes, select Apply.
Close Power BI Desktop.
