Lab answer key: Upgrade and migrate in Windows Server

Note: An interactive lab simulation is available that allows you to click through this lab at your own pace. You may find slight differences between the interactive simulation and the hosted lab, but the core concepts and ideas being demonstrated are the same.

Exercise 1: Deploying AD DS domain controllers in Azure

Task 1: Deploy a domain controller by using an Azure Resource Manager (ARM) template

  1. Connect to SEA-SVR2, and then, if needed, sign in as CONTOSO\Administrator with the password Pa55w.rd.
  2. On SEA-SVR2, start Microsoft Edge, and access a customized version of the QuickStart template at Create a new Windows VM and create a new AD Forest, Domain and DC.
  3. On the Create a new Windows VM and create a new AD Forest, Domain and DC page, select Deploy to Azure. This will automatically redirect the browser to the Create an Azure VM with a new AD Forest page in the Azure portal.
  4. On the Create an Azure VM with a new AD Forest page, select Edit template.

  5. On the Edit template page, browse to the storageProfile section (starting with the line 195) and verify that the sku (on line 199) is set to 2022-Datacenter, that the version (on line 200) is set to latest and that dataDisks caching (on line 213) is set to None.

    Note: Caching on the disks hosting AD DS database and log files should be set to None.

  6. On the Edit template page, browse to the extension section (starting with the line 233) and note that the template uses PowerShell Desired State Configuration to run the CreateADPDC.ps1 script within the deployed Azure virtual machine (VM).

    Note: To review the script, you can use the following steps:

    1. On SEA-SVR2, open another tab in the Microsoft Edge window, and again access the customized version of QuickStart template at Create a new Windows VM and create a new AD Forest, Domain and DC.
    2. On the Create a new Windows VM and create a new AD Forest, Domain and DC page, in the listing of the repository content, select the DSC folder, and then select CreateADPDC.ps1 file.
    3. On the azure-quickstart-templates/application-workloads/active-directory/active-directory-new-domain/DSC/CreateADPDC.ps1 page, review the content of the script and note that it installs a number of server roles, including Active Directory Domain Services and DNS, placing the NTDS database and logs, as well as the SYSOVL share on drive F.
    4. Close the Microsoft Edge tab and switch back to the one displaying the Edit template page in the Azure portal.

  7. On the Edit template page, browse to the section that provisions an availability set (starting with the line 110) and note that the template creates an availability set and deploys the VM into it (as indicated by the dependsOn element on line 181).

    Note: Later in this exercise, you will deploy another Azure VM into the same availability set and configure it as an additional domain controller in the same domain. The use of an availability set provides additional resiliency.

  8. Browse to the section that provisions the network interface of the Azure VM (starting with the line 110) and note that the private IP address allocation method is set to Static (on line 164).

    Note: Using the static assignment is common when deploying domain controllers, but it is essential for servers that host the DNS server role.

  9. Browse to the section that deploys a nested template(starting with line 266) and note that the template updates the DNS server address within the virtual network hosting the Azure VM operating as a domain controller with the DNS server role installed.

    Note: Configuring the custom DNS server virtual network setting that points to the Azure VM running the domain controller with the DNS server role ensures that any Azure VM subsequently deployed into the same virtual network will automatically use that DNS server for name resolution, effectively providing the domain join functionality.

  10. On the Edit template page, select Discard.
  11. Back on the Create an Azure VM with a new AD Forest page, select Edit parameters.
  12. On the Edit parameters page, select Load file, in the File Upload dialog box, browse to the C:\Labfiles\Lab06 folder, select the L06-rg_template.parameters.json file, and then select Open.
  13. On the Edit template page, select Save.
  14. Back on the Create an Azure VM with a new AD Forest page, below the Resource group drop-down list, select Create new, in the Name text box, enter AZ801-L0601-RG, and then select OK.

  15. On the Create an Azure VM with a new AD Forest page, if needed, adjust the deployment settings so they have the following values (leave others with their default values):

    Setting Value
    Subscription the name of the Azure subscription you are using in this lab
    Resource group the name of a new resource group AZ801-L0601-RG
    Region the name of an Azure region into which you can provision Azure VMs
    Admin Username Student
    Admin Password Pa55w.rd1234
    Domain name contoso.com
    Vm Size Standard_DS2_v2
    _artifacts Location https://raw.githubusercontent.com/az140mp/azure-quickstart-templates/master/application-workloads/active-directory/active-directory-new-domain/
    Virtual Machine Name az801l06a-dc1
    Virtual Network Name az801l06a-vnet
    Virtual Network Address Range 10.6.0.0/16
    Network Interface Name az801l06a-dc1-nic1
    Private IP Address 10.6.0.4
    Subnet Name adSubnet
    Subnet Range 10.6.0.0/24
    Availability Set Name adAvailabilitySet

  16. On the Create an Azure VM with a new AD Forest page, select Review + create, and then select Create.

    Note: Wait for the deployment to complete before you proceed to the next task. This might take about 15 minutes.

Task 2: Deploy Azure Bastion

Note: Azure Bastion allows for connection to the Azure VMs without public endpoints which you deployed in the previous task of this exercise, while providing protection against brute force exploits that target operating system level credentials.

  1. On SEA-SVR2, in the Microsoft Edge window displaying the Azure portal, open the Azure Cloud Shell pane by selecting the Cloud Shell button in the Azure portal.

  2. If prompted to select either Bash or PowerShell, select PowerShell.

    Note: If this is the first time you’re starting Cloud Shell and you’re presented with the You have no storage mounted message, select the subscription you are using in this lab, and then select Create storage.

  3. From the PowerShell session in the Cloud Shell pane, run the following commands to add a subnet named AzureBastionSubnet to the virtual network az801l06a-vnet you created earlier in this exercise:

    $resourceGroupName = 'AZ801-L0601-RG'
$vnet = Get-AzVirtualNetwork -ResourceGroupName $resourceGroupName -Name 'az801l06a-vnet'
$subnetConfig = Add-AzVirtualNetworkSubnetConfig `
 -Name 'AzureBastionSubnet' `
 -AddressPrefix 10.6.255.0/24 `
 -VirtualNetwork $vnet
$vnet | Set-AzVirtualNetwork
  4. Close the Cloud Shell pane.
  5. In the Azure portal, in the Search resources, services, and docs text box, on the toolbar, search for and select Bastions, and then, on the Bastions page, select + Create.

  6. On the Basic tab of the Create a Bastion page, specify the following settings, and then select Review + create:

    Setting Value
    Subscription the name of the Azure subscription you are using in this lab
    Resource group the name of a new resource group AZ801-L0602-RG
    Name az801l06a-bastion
    Region the same Azure region to which you deployed the resources in the previous tasks of this exercise
    Tier Basic
    Virtual network az801l06a-vnet
    Subnet AzureBastionSubnet (10.6.255.0/24)
    Public IP address Create new
    Public IP name az801l06a-vnet-ip

  7. On the Review + create tab of the Create a Bastion page, select Create:

    Note: Do not wait for the deployment to complete but instead proceed to the next task. The deployment might take about 5 minutes.

Task 3: Deploy an Azure VM by using the Azure portal

Note: You could fully automate the deployment of the second Azure VM and its setup as an additional domain controller in the same domain as the first one you provisioned in the first task of this exercise. However, the use of graphical interface in this case should provide additional guidance regarding differences between provisioning domain controllers in on-premises and Azure-based scenarios.

  1. On SEA-SVR2, in the Microsoft Edge window displaying the Azure portal, in the Search resources, services, and docs text box, on the toolbar, search for and select Virtual machines.
  2. On the Virtual machines page, select + Create, and then, in the drop-down menu, select Azure virtual machine.

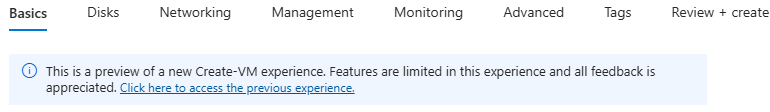

  3. On the Basics tab of the Create a virtual machine blade, specify the following settings (leave others with their default values):

    Setting Value
    Subscription the name of the Azure subscription you are using in this lab
    Resource group select the existing resource group AZ801-L0601-RG
    Virtual machine name az801l06a-dc2
    Region select the same Azure region into which you deployed the first virtual machine earlier in this exercise
    Availability options Availability set
    Availability set adAvailabilitySet
    Image Windows Server 2022 Datacenter: Azure Edition - Gen2
    Run with Azure Spot discount No
    Size Standard D2s v3
    Username Student
    Password Pa55w.rd1234
    Public inbound ports None
    Would you like to use an existing Windows Server license? No

  4. Select Next: Disks >, and then, on the Disks tab of the Create a virtual machine blade, specify the following settings (leave others with their default values):

    Setting Value
    OS disk type Standard SSD
  5. On the Disks tab of the Create a virtual machine blade, in the Data disks section, select Create and attach a new disk.

  6. On the Create a new disk page, specify the following settings (leave others with their default values), and then select OK:

    Setting Value
    Name az801l06a-dc2_DataDisk_0
    Source type None (empty disk)
    Size 32 GiB Premium SSD

  7. Back on the Disks tab of the Create a virtual machine blade, select Next: Networking >, and then, on the Networking tab of the Create a virtual machine blade, specify the following settings (leave others with their default values):

    Setting Value
    Virtual network az801l06a-vnet
    Subnet adSubnet (10.6.0.0/24)
    Public IP None
    NIC network security group None
    Enable accelerated networking disabled
    Place this virtual machine behind an existing load balancing solution? disabled

  8. Select Next: Management >, and then, on the Management tab of the Create a virtual machine blade, specify the following settings (leave others with their default values):

    Setting Value
    Patch orchestration options Manual updates

  9. Select Next: Monitoring >, and then, on the Monitoring tab of the Create a virtual machine blade, specify the following settings (leave others with their default values):

    Setting Value
    Boot diagnostics Enable with managed storage account (recommended)
  10. Select Next: Advanced >, on the Advanced tab of the Create a virtual machine blade, review the available settings without modifying any of them, and then select Review + Create.

  11. On the Review + Create blade, select Create.

    Note: Wait for the deployment to complete. The deployment might take about 3 minutes.

Task 4: Manually promote a domain controller in an Azure VM

  1. On SEA-SVR2, in the Microsoft Edge window displaying the Azure portal, on the deployment page, select Go to resource.
  2. On the az801l06a-dc2 page, on the vertical menu of the left side, in the Settings section, select Networking.
  3. On the az801l06a-dc2 | Networking page, select the link to the network interface of the az801l06a-dc2 virtual machine.
  4. On the network interface page, on the vertical menu of the left side, in the Settings section, select IP Configurations.
  5. On the IP Configurations page, select ipconfig1 entry.

  6. On the ipconfig1 page, in the Private IP address settings section, select Static, and then select Save.

    Note: Using the static assignment is common when deploying domain controllers, but it is essential for servers that host the DNS server role.

    Note: Assigning static IP address to a network interface of an Azure VM will trigger a restart of its operating system.

  7. On SEA-SVR2, in the Microsoft Edge window displaying the Azure portal, browse back to the az801l06a-dc2 page.
  8. On the az801l06a-dc2 page, select Connect, from the drop-down menu, select Bastion.

  9. On the Bastion page, provide the following credentials, and then select Connect:

    Setting Value
    User Name Student
    Password Pa55w.rd1234

Note: Edge by default will block popups. To allow popups for Bastion go to Settings in Edge, select Cookies and site permissions on the left, Pop-ups and redirects under All permissions and finally toggle Block (recommended) off.

  1. Within the Remote Desktop session to az801l06a-dc2, select Start, and then select Windows PowerShell.

  2. To install the AD DS and DNS server roles, at the Windows PowerShell command prompt, enter the following command, and then press Enter:

    Install-WindowsFeature -Name AD-Domain-Services,DNS -IncludeManagementTools

    Note: Wait for the installation to complete. This might take about 3 minutes.

  3. To configure the data disk, at the Windows PowerShell prompt, enter the following commands, and after entering each command, press Enter:

    Get-Disk | Where PartitionStyle -eq 'RAW' |  Initialize-Disk -PartitionStyle MBR
New-Partition -DiskNumber 2 -UseMaximumSize -AssignDriveLetter
Format-Volume -DriveLetter F -FileSystem NTFS
  4. Within the Remote Desktop session to az801l06a-dc2, switch to the Server Manager window.
  5. In Server Manager, select the Notifications flag symbol, and then, in the Post-deployment Configuration section, select the Promote this server to a domain controller link. This will start Active Directory Domain Services Configuration Wizard.
  6. On the Deployment Configuration page of Active Directory Domain Services Configuration Wizard, under Select the deployment operation, verify that Add a domain controller to an existing domain is selected.
  7. In the Domain text box, enter contoso.com domain.
  8. In the Supply the credentials to perform this operation section, select Change.
  9. In the Credentials for deployment operation dialog box, in the User name box, enter Student@contoso.com, in the Password box, enter Pa55w.rd1234, and then select OK.
  10. Back on the Deployment Configuration page of Active Directory Domain Services Configuration Wizard, select Next.
  11. On the Domain Controller Options page, ensure that the Domain Name System (DNS) server and Global Catalog (GC) checkboxes are selected. Ensure that the Read-only domain controller (RODC) checkbox is cleared.
  12. In the Type the Directory Services Restore Mode (DSRM) password section, enter and confirm the password Pa55w.rd1234, and then select Next.
  13. On the DNS Options page of Active Directory Domain Services Configuration Wizard, select Next.
  14. On the Additional Options page, select Next.
  15. On the Paths page, change the drive of the path settings from C: to F: for the Database folder, Log files folder, and SYSVOL folder, and then select Next.
  16. On the Review Options page, select Next.

  17. On the Prerequisite Check page, note the warnings regarding network adapter not having static IP address, and then select Install.

    Note: The warning is expected because the static IP address is assigned on the platform level, rather than within the operating system.

    Note: The operating system will restart automatically to complete the promotion process.

  18. On SEA-SVR2, in the Microsoft Edge window displaying the Azure portal, on the az801l06a-dc2 page, select Connect, from the drop-down menu, select Bastion.

  19. On the Bastion page, provide the following credentials, and then select Connect:

    Setting Value
    User Name Student
    Password Pa55w.rd1234
  20. Within the Remote Desktop session to az801l06a-dc2, wait until the Server Manager window opens and verify that the list of locally installed roles includes AD DS and DNS.

Task 5: Remove Azure resources deployed in the exercise

  1. On SEA-SVR2, in the Microsoft Edge window displaying the Azure portal, open a PowerShell session within the Azure Cloud Shell pane by selecting the Cloud Shell button in the Azure portal.

  2. From the Cloud Shell pane, run the following command to list all resource groups you created in this lab:

    Get-AzResourceGroup -Name 'AZ801-L060*'

    Note: Verify that the output contains only the resource group you created in this lab. This group will be deleted in this task.

  3. From the Cloud Shell pane, run the following command to delete the resource group you created in this lab:

    Get-AzResourceGroup -Name 'AZ801-L060*' | Remove-AzResourceGroup -Force -AsJob

    Note: The command executes asynchronously (as determined by the -AsJob parameter), so while you will be able to immediately run another PowerShell command within the same PowerShell session, it will take a few minutes before the resource groups are actually removed.

Exercise 2: Migrating file servers by using Storage Migration Service

Task 1: Install Windows Admin Center

  1. On SEA-SVR2, select Start, and then select Windows PowerShell.

  2. In the Windows PowerShell console, enter the following command, and then press Enter to download the latest version of Windows Admin Center:

    Start-BitsTransfer -Source https://aka.ms/WACDownload -Destination "$env:USERPROFILE\Downloads\WindowsAdminCenter.msi"

  3. Enter the following command, and then press Enter to install Windows Admin Center:

    Start-Process msiexec.exe -Wait -ArgumentList "/i $env:USERPROFILE\Downloads\WindowsAdminCenter.msi /qn /L*v log.txt REGISTRY_REDIRECT_PORT_80=1 SME_PORT=443 SSL_CERTIFICATE_OPTION=generate"

    Note: Wait until the installation completes. This should take about 2 minutes.

Task 2: Set up file services

  1. On SEA-SVR2, on the taskbar, select File Explorer.
  2. In File Explorer, browse to the C:\Labfiles\Lab06 folder.

  3. In File Explorer, in the details pane, select the file L06_SetupFS.ps1, display its context menu, and then, in the menu, select Edit.

    Note: This will automatically open the file L06_SetupFS.ps1 in the script pane of Windows PowerShell ISE.

  4. In the Windows PowerShell ISE script pane, review the script, and then execute it by selecting the Run Script icon in the toolbar or by pressing F5.

    Note: Wait for the script to complete. This should take about 1 minute.

    Note: The script initializes an extra data disk on SEA-SVR1 and SEA-SVR2, creates an NTFS volume on each, assigns the S: drive letter to each volume, creates a share named Data using the S:\Data folder on SEA-SVR1, and adds to it sample files with a total size of about 1 GB.

Task 3: Perform migration by using Storage Migration Service

  1. On SEA-SVR2, start Microsoft Edge, and then go to https://SEA-SVR2.contoso.com.

    Note: If the link does not work, on SEA-SVR2, open File Explorer, select Downloads folder, in the Downloads folder select WindowsAdminCenter.msi file and install manually. After the install completes, refresh Microsoft Edge.

    Note: If you get NET::ERR_CERT_DATE_INVALID error, select Advanced on the Edge browser page, at the bottom of page select Continue to sea-svr2-contoso.com (unsafe).

  2. When prompted, in the Windows Security dialog box, enter the following credentials, and then select OK:

    • Username: CONTOSO\Administrator
    • Password: Pa55w.rd
  3. Review the New in this release pop-up window and select Close in its upper-right corner.
  4. In the All connections pane of Windows Admin Center, in the upper-right corner, select the Settings icon (the cog wheel).
  5. In the left pane, select Extensions. Review the available extensions.

  6. In the details pane, select Installed extensions and verify that the list includes the Storage Migration Service extension.

    Note: If there is an update available, select the Storage Migration Service extension entry and select Update.

  7. On the top menu, next to Settings, select the drop-down arrow, and then select Server Manager.
  8. In the All connections pane, select the sea-svr2.contoso.com link.
  9. On the sea-svr2.contoso.com page, on the Tools menu, select the Storage Migration Service entry.

  10. In the Storage Migration Service pane, select Install.

    Note: This will automatically install the Storage Migration Service and its required components.

  11. In the Migrate storage in three steps pane, select Close.
  12. In the Storage Migration Service pane, scroll down to the bottom of the page and select + New job.
  13. In the New job pane, in the Job name text box, enter SVR1toSVR2, ensure that the Windows servers and clusters Source devices option is selected, and select OK.
  14. In the Storage Migration Service > SVR1toSVR2 pane, on the Inventory servers tab, review the Check the prerequisites pane and select Next.
  15. On the Inventory servers tab, in the Enter credentials pane, if necessary, enter the credentials of the CONTOSO\Administrator user account, clear the Migrate from failover clusters checkbox, and then select Next.
  16. On the Inventory servers tab, in the Install required features pane, select Next.
  17. On the Inventory servers tab, in the Add and scan devices pane, select + Add a device.
  18. On the Add source device, ensure that the Device name option is selected, in the Name text box, enter SEA-SVR1.contoso.com, and then select Add.

  19. In the Specify your credentials pane, select the Use another account for this connection option , enter the following credentials, select Use these credentials for all connections, and then select Continue:

    • Username: CONTOSO\Administrator
    • Password: Pa55w.rd

    Note: To perform single sign-on, you would need to set up Kerberos constrained delegation.

  20. On the list of devices, select the newly added SEA-SVR1.contoso.com entry, in the Add and scan devices pane, in the toolbar, select the ellipsis (…) symbol, and then, in the drop-down menu, select Start scan.

    Note: Wait until the scan completes successfully. This should take about 1 minute.

  21. On the Inventory servers tab, in the Add and scan devices pane, select Next.

    Note: This will transition to the second stage of the migration job accessible via the Transfer data tab in the Storage Migration Service > SVR1toSVR2 pane.

  22. On the Transfer data tab, in the Enter credentials for the destination device pane, verify that the CONTOSO\Administrator user account is being used and select Next.

  23. In the Specify the destination for: sea-svr1.contoso.com pane, ensure that the Destination option is set to Use an existing server or VM, in the Destination device text box, enter SEA-SVR2.contoso.com and select Scan.

    Note: Wait until the scan completes successfully. This should take about 1 minute.

    Note: In hybrid scenarios, you also have the option of automatically creating an Azure VM serving as the destination of the migration job.

  24. After the scan completes, in the Specify the destination for: sea-svr1.contoso.com pane, review the Map each source volume to a destination volume section and ensure that the S: source volume is mapped to the S: destination volume.
  25. In the Specify the destination for: sea-svr1.contoso.com pane, review the Select the shares to transfer section, ensure that the Data source share is included in the transfer, and then select Next.

  26. On the Transfer data tab, in the Adjust transfer settings pane, specify the following settings (leave others with their default values), and then select Next:

    Setting Value
    Back up folders that would be overwritten (Azure File Sync-enabled shares aren’t backed up) enabled
    Validation method CRC 64
    Max duration (minutes) 60
    Migrate users and groups Reuse accounts with the same name
    Max retries 3
    Delay between retries (seconds) 60
  27. On the Transfer data tab, in the Install required features pane, wait for the installation of SMS-Proxy on SEA-SVR2.contoso.com to complete, and then select Next.
  28. On the Transfer data tab, in the Validate source and destination devices pane, select Validate, and after the validation successfully completes, select Next.

  29. On the Transfer data tab, in the Start the transfer pane, select Start transfer, wait until it completes, and then select Next.

    Note: Wait until the transfer completes successfully. This should take less than 1 minute.

    Note: This will transition to the third stage of the migration job accessible via the Cut over to the new servers tab on the Storage Migration Service > SVR1toSVR2 pane.

  30. On the Cut over to the new servers tab, in the Enter credentials for the source devices and the Enter credentials for the destination devices sections, accept the stored credentials of the CONTOSO\Administrator user account and select Next.

  31. On the Cut over to the new servers tab, in the Configure cutover from sea-svr1.contoso.com to sea-svr2.contoso.com pane, in the Source network adapters section, specify the following settings:

    Setting Value
    Use DHCP disabled
    IP address 172.16.10.111
    Subnet 255.255.0.0
    Gateway 172.16.10.1
  32. On the Cut over to the new servers tab, in the Configure cutover from sea-svr1.contoso.com to sea-svr2.contoso.com pane, in the Destination network adapters drop-down list, select Ethernet.
  33. On the Cut over to the new servers tab, in the Configure cutover from sea-svr1.contoso.com to sea-svr2.contoso.com pane, in the Rename the source device after cutover section, select the Choose a new name option, in the New source computer name, enter SEA-SVR1-OLD, and then select Next.
  34. On the Cut over to the new servers tab, in the Adjust cutover settings pane, in the Cutover timeout (minutes) text box, enter 30, in the Enter AD credentials section, leave the Stored credentials option enabled, and then select Next.
  35. On the Cut over to the new servers tab, in the Validate source and destination device pane, select Validate, and after the validation successfully completes, select Next.

  36. On the Cut over to the new servers tab, in the Cut over to the new servers pane, select Start cutover.

    Note: The cutover will trigger two consecutive restarts of both SEA-SVR1 and SEA-SVR2.

Task 4: Validate migration outcome

  1. On SEA-SVR2, sign in as CONTOSO\Administrator with the password Pa55w.rd.
  2. On SEA-SVR2, select Start, and then select Windows PowerShell.

  3. To identify the IPv4 addresses assigned to the network interface of SEA-SVR2, in the Windows PowerShell console, enter the following command, and then press Enter:

    Get-NetIPAddress | Where-Object AddressFamily -eq 'IPv4' | Select-Object IPAddress

    Note: Verify that the output includes both 172.16.10.11 and 172.16.10.12.

  4. To identify the NetBIOS name assigned to SEA-SVR2, in the Windows PowerShell console, enter the following command, and then press Enter:

    nbtstat -n

    Note: Verify that the output includes both SEA-SVR1 and SEA-SVR2.

  5. To identify the local shares on SEA-SVR2, in the Windows PowerShell console, enter the following command, and then press Enter:

    Get-SMBShare

    Note: Verify that the output includes the Data share hosted in the S:\Data folder.

  6. To identify the content of the Data share on SEA-SVR2, in the Windows PowerShell console, enter the following command, and then press Enter:

    Get-ChildItem -Path 'S:\Data'
