Lab: Migrating Hyper-V VMs to Azure by using Azure Migrate

This exercise should take approximately 120 minutes to complete.

Lab scenario

Despite its ambitions to modernize its workloads as part of the migration to Azure, the Adatum Enterprise Architecture team realizes that, due to aggressive timelines, in many cases, it will be necessary to follow the lift-and-shift approach. To simplify this task, the team starts exploring the capabilities of Azure Migrate. Azure Migrate serves as a centralized hub to assess and migrate to Azure on-premises servers, infrastructure, applications, and data.

Azure Migrate provides the following features:

Unified migration platform: A single portal to start, run, and track your migration to Azure.
Range of tools: A range of tools for assessment and migration. Tools include Azure Migrate: Server Assessment and Migration and modernization. Azure Migrate integrates with other Azure services and with other tools and independent software vendor (ISV) offerings.
Assessment and migration: In the Azure Migrate hub, you can assess and migrate:
- Servers: Assess on-premises servers and migrate them to Azure virtual machines.
- Databases: Assess on-premises databases and migrate them to Azure SQL Database or to SQL Managed Instance.
- Web applications: Assess on-premises web applications and migrate them to Azure App Service by using the Azure App Service Migration Assistant.
- Virtual desktops: Assess your on-premises virtual desktop infrastructure (VDI) and migrate it to Windows Virtual Desktop in Azure.
- Data: Migrate large amounts of data to Azure quickly and cost-effectively using Azure Data Box products.

While databases, web apps, and virtual desktops are within the scope of the next stage of the migration initiative, the Adatum Enterprise Architecture team wants to start by evaluating the use of Azure Migrate for migrating their on-premises Hyper-V virtual machines to Azure VM.

Objectives

After completing this lab, you will be able to:

Prepare for assessment and migration by using Azure Migrate.
Assess Hyper-V for migration by using Azure Migrate.
Migrate Hyper-V VMs by using Azure Migrate.

Estimated Time: 120 minutes

Lab Environment

Virtual machines: AZ-801T00A-SEA-DC1 and AZ-801T00A-SEA-SVR2 must be running. Other VMs can be running, but they aren’t required for this lab.

Note: AZ-801T00A-SEA-DC1 and AZ-801T00A-SEA-SVR2 virtual machines are hosting the installation of SEA-DC1 and SEA-SVR2

Select SEA-SVR2.
Sign in using the credentials provided by the instructor.

For this lab, you’ll use the available VM environment and an Azure subscription. Before you begin the lab, ensure that you have an Azure subscription and a user account with the Owner role in that subscription.

Exercise 1: Prepare the lab environment

The main tasks for this exercise are as follows:

Deploy an Azure VM by using an Azure Resource Manager template.
Deploy Azure Bastion.
Deploy a nested VM in the Azure VM.

Task 1: Deploy an Azure VM by using an Azure Resource Manager template

On SEA-SVR2, start Microsoft Edge, go to the Azure portal at https://portal.azure.com/, and sign in by using the credentials of a user account with the Owner role in the subscription you’ll be using in this lab.
In the Azure portal search box, enter Deploy a custom template, and then select Deploy a custom template from the results.
On the Custom deployment page, select Build your own template in the editor.
On the Edit template page, select Load file, load C:\Labfiles\Lab07\azuredeploy.json, and then select Save.

On the Custom deployment page, perform a deployment with the following settings (leave others with their default values):

Setting	Value
Subscription	the name of the Azure subscription you are using in this lab
Resource group	the name of a new resource group AZ801-L0701-RG
Region	the name of an Azure region into which you can provision Azure VMs
Virtual Network Name	az801l07a-hv-vnet
Host Network Interface1Name	az801l07a-hv-vm-nic1
Host Network Interface2Name	az801l07a-hv-vm-nic2
Host Virtual Machine Name	az801l07a-hv-vm
Host Virtual Machine Size	Standard_D4s_v5
Host Admin Username	Student
Host Admin Password	Pa55w.rd1234
_artifacts Location	`https://raw.githubusercontent.com/MicrosoftLearning/AZ-801-Configuring-Windows-Server-Hybrid-Advanced-Services/master/Allfiles/Labfiles/Lab07/`

[!NOTE] Keep the D4s capacity required by the nested Hyper-V host. Use Standard_D4s_v5 first. If the deployment fails because the size is unavailable or Azure lacks capacity, select Standard_D4s_v6 and redeploy to the same resource group. If necessary, retry with Standard_D4s_v7. If a retry fails because an existing or partially deployed resource causes a conflict, delete AZ801-L0701-RG. Restart Task 1 from Deploy a custom template, reload C:\Labfiles\Lab07\azuredeploy.json, verify _artifacts Location, recreate AZ801-L0701-RG, and deploy again with the selected VM size.

Note: Wait for the deployment to complete. The deployment might take about 10 minutes.

Task 2: Deploy Azure Bastion

Note: Azure Bastion allows for connection to the Azure VMs without public endpoints which you deployed in the previous task of this exercise, while providing protection against brute force exploits that target operating system level credentials.

On SEA-SVR2, in the browser window displaying the Azure portal, open a PowerShell session on the Cloud Shell pane.

From the PowerShell session on the Cloud Shell pane, run the following commands to add a subnet named AzureBastionSubnet to the virtual network named az801l07a-hv-vnet you created earlier in this exercise:

$resourceGroupName = 'AZ801-L0701-RG'
$vnet = Get-AzVirtualNetwork -ResourceGroupName $resourceGroupName -Name 'az801l07a-hv-vnet'
$subnetConfig = Add-AzVirtualNetworkSubnetConfig `
 -Name 'AzureBastionSubnet' `
 -AddressPrefix 10.0.7.0/24 `
 -VirtualNetwork $vnet
$vnet | Set-AzVirtualNetwork

Close the Cloud Shell pane.

From the Azure portal, create an Azure Bastion instance with the following settings:

Setting	Value
Subscription	the name of the Azure subscription you are using in this lab
Resource group	AZ801-L0701-RG
Name	az801l07a-bastion
Region	the same Azure region to which you deployed the resources in the previous tasks of this exercise
Tier	Basic
Virtual network	az801l07a-hv-vnet
Subnet	AzureBastionSubnet (10.0.7.0/24)
Public IP address	Create new
Public IP name	az801l07a-hv-vnet-ip

Note: The bastion must be created in the same Azure region as the virtual network.

Note: Wait for the deployment to complete before you proceed to the next task. The deployment might take about 5 minutes.

Task 3: Deploy a nested VM in the Azure VM

In the Azure portal, browse to the az801l07a-hv-vm virtual machine page.

From the az801l07a-hv-vm page, connect to the operating system running within the virtual machine, via Azure Bastion, with the following credentials:

Setting	Value
User Name	Student
Password	Pa55w.rd1234

Within the Remote Desktop session to az801l07a-hv-vm, in the Server Manager window, disable IE Enhanced Security Configuration.
Use File Explorer to create two folders F:\VHDs and F:\VMs.
Use Microsoft Edge to download the Windows Server 2022 VHD file from Windows Server Evaluations and copy it to the F:\VHDs folder.

Use Hyper-V Manager to create a new virtual machine with the following settings:

Setting	Value
Name	az801l07a-vm1
Store the virtual machine in a different location	selected
Location	F:\VMs
Generation	1
Memory	static set to 2048 MB
Connection	NestedSwitch
Virtual Hard Disk	the VHD file downloaded to the F:\VHDs folder

Start the newly provisioned VM and connect to it by using the Virtual Machine Connection.
In the Virtual Machine Connection window, initialize the operating system.
Set the password of the built-in Administrator account to Pa55w.rd.
In the Virtual Machine Connection window, sign in to az801l07a-vm1.
Open a Windows PowerShell window and set the computer name to az801l07a-vm1 by running:
```
Rename-Computer -NewName 'az801l07a-vm1' -Restart
```

Exercise 2: Prepare for assessment and migration by using Azure Migrate

The main tasks for this exercise are as follows:

Configure Hyper-V environment.
Create an Azure Migrate project.
Implement the target Azure environment.

Task 1: Configure Hyper-V environment

Within the Remote Desktop session to az801l07a-hv-vm, in the browser window, go to https://aka.ms/migrate/script/hyperv, and download the Azure Migrate configuration PowerShell script.
Note: The script performs the following tasks:
- Checks that you’re running the script on a supported PowerShell version
- Verifies that you have administrative privileges on the Hyper-V host
- Allows you to create a local user account that the Azure Migrate service uses to communicate with the Hyper-V host (This user account is added to Remote Management Users, Hyper-V Administrators, and Performance Monitor Users groups on the Hyper-V host.)
- Checks that the host is running a supported version of Hyper-V and the Hyper-V role
- Enables the WinRM service and opens ports 5985 (HTTP) and 5986 (HTTPS) on the host (This is required for metadata collection.)
- Enables PowerShell remoting on the host
- Checks that the Hyper-V Integration Services is enabled on all VMs managed by the host
- Enables CredSSP on the host if needed
Within the Remote Desktop session to az801l07a-hv-vm, start Windows PowerShell ISE.

In the Administrator: Windows PowerShell ISE window, run the following commands to copy the script to the C:\Labfiles\Lab07 folder and remove the Zone.Identifier alternate data stream, which, in this case, indicates that the file was downloaded from the Internet:

New-Item -ItemType Directory -Path C:\Labfiles\Lab07 -Force
Copy-Item -Path "$env:USERPROFILE\Downloads\MicrosoftAzureMigrate-Hyper-V.ps1" -Destination 'C:\Labfiles\Lab07'
Unblock-File -Path C:\Labfiles\Lab07\MicrosoftAzureMigrate-Hyper-V.ps1
Set-Location -Path C:\Labfiles\Lab07

In the Administrator: Windows PowerShell ISE window, open the MicrosoftAzureMigrate-Hyper-V.ps1 script residing in the C:\Labfiles\Lab07 folder and run it. When prompted for confirmation, enter Y and press Enter, with the exception of the following prompts, in which case, enter N and press Enter:
- Do you use SMB share(s) to store the VHDs?
- Do you want to create non-administrator local user for Azure Migrate and Hyper-V Host communication?

Task 2: Create an Azure Migrate project

Within the Remote Desktop session to az801l07a-hv-vm, in the browser window, go to the Azure portal at https://portal.azure.com/, and sign in by using the credentials of a user account with the Owner role in the subscription you are using in this lab.

In the Azure portal, browse to the Azure Migrate page and create a project with the following settings (leave others with their default values):

Setting	Value
Subscription	the name of the Azure subscription you are using in this lab
Resource group	the name of a new resource group AZ801-L0702-RG
Migrate project	az801l07a-migrate-project
Geography	the name of your country or a geographical region

Task 3: Implement the target Azure environment

In the Azure portal, create a virtual network with the following settings (leave others with their default values):

Setting	Value
Subscription	the name of the Azure subscription you are using in this lab
Resource group	the name of a new resource group AZ801-L0703-RG
Name	az801l07a-migration-vnet
Region	the name of the Azure region into which you deployed the virtual machine earlier in this lab
Subnet name	subnet0
Subnet address range	10.7.0.0/24

In the Azure portal, create another virtual network with the following settings (leave others with their default values):

Setting	Value
Subscription	the name of the Azure subscription you are using in this lab
Resource group	AZ801-L0703-RG
Name	az801l07a-test-vnet
Region	the name of the Azure region into which you deployed the virtual machine earlier in this lab
Setting	Value
Subnet name	subnet0
Subnet address range	10.7.0.0/24

In the Azure portal, create a storage account with the following settings (leave others with their default values):

Setting	Value
Subscription	the name of the Azure subscription you are using in this lab
Resource group	AZ801-L0703-RG
Storage account name	any globally unique name between 3 and 24 characters in length, consisting of letters and digits
Location	the name of the Azure region in which you created the virtual network earlier in this task
Performance	Standard
Redundancy	Locally redundant storage (LRS)
Enable soft delete for blobs	disabled
Enable soft delete for containers	disabled

Exercise 3: Assess Hyper-V for migration by using Azure Migrate

The main tasks for this exercise are as follows:

Deploy and configure the Azure Migrate appliance
Configure, run, and view an assessment

Task 1: Deploy and configure the Azure Migrate appliance

Within the Remote Desktop session to az801l07a-hv-vm, in the browser window, in the Azure portal, browse to the newly created Azure Migrate project.

On the **Azure Migrate

Get Started** page, in the Servers, databases, and web apps section, select Discover, assess, and migrate and then go to the Discover page.

On the Discover page, ensure that the Discover using appliance option is selected and set the value of Are your servers virtualized? setting to Yes, with Hyper-V.
On the Discover page, set the value of the appliance to az801l07a-vma1 and generate the corresponding key.

Note: Wait for the key generation to complete and record its value. You will need it later in this exercise.
From the Discover page, download the .VHD file of the appliance VM to the F:\VMs folder.

Note: Wait for the download to complete. This might take about 5 minutes.
Once the download completes, extract the content of the downloaded .ZIP file into the F:\VMs folder.

Note: As Microsoft Edge doesn’t prompt by default, you may need to manually copy the .VHD file to the F:\VMs folder.
Within the Remote Desktop session to az801l07a-hv-vm, use the Hyper-V Manager console to import the virtual machine, of which you copied the VM files, into the F:\VMs folder. Use the Register the virtual machine in-place (use the existing unique ID) option, set the Number of virtual processors to 4, and then connect it to NestedSwitch.

Note: In a lab environment, you can ignore any error messages referring to the change of the number of virtual processors. In production scenarios, you should ensure that the virtual appliance has the sufficient number of compute resources assigned to it.
Rename the newly imported virtual machine to az801l07a-vma1.
Start the newly imported virtual machine and connect to it by using the Virtual Machine Connection window.
In the Virtual Machine Connection window to the virtual appliance, accept the License terms and set the password of the built-in Administrator account to Pa55w.rd.
In the Virtual Machine Connection window to the virtual appliance, in the Action menu, select Ctrl + Alt + Delete and then, when prompted, sign in by using the newly set password.

Note: Within the Virtual Machine Connection window to the virtual appliance, a browser window displaying Appliance Configuration Manager will automatically open.
On the Appliance Configuration Manager page, select the I agree button and wait for the setup prerequisites to be successfully verified.
On the Appliance Configuration Manager page, in the Register Hyper-V appliance by pasting the key here text box, paste the key you copied into Notepad earlier in this exercise, select Login, and then sign in to your subscriptions by using the device code.
When prompted Are you trying to sign in to Microsoft Azure PowerShell?, select Continue and close the newly opened browser tab.
On the Appliance Configuration Manager page, verify that registration was successful.

On the Appliance Configuration Manager page, in the Manage credentials and discovery sources section, add credentials with the following settings:

Setting	Value
Friendly Name	az801l07ahvcred
User Name	Student
Password	Pa55w.rd1234

Within the browser window, on the Appliance Configuration Manager page, in the Provide Hyper-V host/cluster details section, add a discovery source set to Hyper-V Host/Cluster, set its Friendly name to az801l07ahvcred and its IP address /FQDN to 10.0.2.1.

Note: 10.0.2.1 is the IP address of the network interface of the Hyper-V host attached to the internal switch.
On the Appliance Configuration Manager page, in the Provide Hyper-V host/cluster details section, enable the toggle button for Disable the slider if you don’t want to perform these features, and then select Start discovery.

Note: It might take about 15 minutes per host for metadata of discovered servers to appear in the Azure portal.

Task 2: Configure, run, and view an assessment

From the Virtual Machine Connection window to the virtual appliance, switch to the Remote Desktop session to az801l07a-hv-vm. In the browser window displaying the Azure portal, browse back to the **Azure Migrate

Servers, databases and web apps** page and select Refresh. In the Azure Migrate: Discovery and assessment section, select Assess and then, in the drop-down menu, select Azure VM.

On the Create assessment page, specify the following settings (leave others with their default values):

Setting	Value
Target location	the name of the Azure region you are using in this lab
Storage type	Premium managed disks
Reserved instances	No reserved instances
Sizing criteria	As on premises
VM series	Dsv3_series
Comfort factor	1
Offer	Pay-As-You-Go
Currency	US Dollar ($)
Discount	0
VM uptime	31 Day(s) per month and 24 Hour(s) per day
Assessment name	az801l07a-assessment**
Select or create a group	az801l07a-assessment-group
List of machines to be added to the group	az801l07a-vm1

Note: Considering the limited time inherent to the lab environment, the only viable option in this case is an As on-premises assessment.

Back on the Azure Migrate | Servers, databases and web apps page, select Refresh. In the Azure Migrate: Discovery and Assessment section, verify that the Assessments Total line contains the 1 entry, and then select it.
On the Azure Migrate: Discovery and Assessment | Assessments page, select the newly created assessment az801l07a-assessment.
On the az801l07a-assessment page, review the information indicating Azure readiness and monthly cost estimate for both compute and storage.

Note: In real-world scenarios, you should consider installing the Dependency agent to provide more insights into server dependencies during the assessment stage.

Exercise 4: Migrate Hyper-V VMs by using Azure Migrate

The main tasks for this exercise are as follows:

Prepare for migration of Hyper-V VMs.
Configure replication of Hyper-V VMs.
Perform migration of Hyper-V VMs.
Remove Azure resources deployed in the lab.

Task 1: Prepare for migration of Hyper-V VMs

Within the Remote Desktop session to az801l07a-hv-vm, in the browser window displaying the Azure portal, browse back to the **Azure Migrate

az801l07a-migrate-project** page.

Under Execute on the left menu, select Migrations, and then select Start execution.

On the Specify intent page, specify the following settings:

Setting	Value
What do you want to migrate?	Servers or virtual machines (VMs)
Where do you want to migrate to?	Azure VM
How will you select workloads?	From replication provider (Hyper-V)

[!NOTE] This provider registration is separate from the Azure Migrate appliance registration that you completed in Exercise 3. You must install the replication provider on az801l07a-hv-vm, which is the Hyper-V host, before Azure Migrate can replicate its virtual machines.

A message indicates that no Hyper-V hosts are registered with the project. In that message, select the link to set up the replication provider.

On the provider setup page, specify the following settings, and then select Create resources:

Setting	Value
Target region	the name of the Azure region you are using in this lab
Confirm the target region for migration	selected

Note: This step automatically triggers the provisioning of an Azure Site Recovery vault.

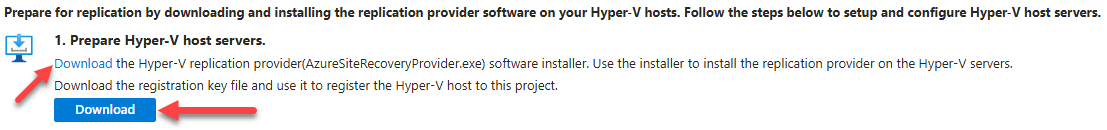

In Prepare Hyper-V host servers, select the Download the Hyper-V replication provider link to download the AzureSiteRecoveryProvider.exe software installer.

Note: If you receive a browser notification that says AzureSiteRecoveryProvider.exe can’t be downloaded securely, display the context-sensitive menu of the Download link and then, in the menu, select Copy link. Open another tab in the same browser window, paste the link you copied, and then press Enter.
In the same section, select the blue Download button to download the .VaultCredentials registration key file. You need both downloaded files to register the Hyper-V host.
Run AzureSiteRecoveryProvider.exe and install the Azure Site Recovery Provider. When installation completes, select Register, not Finish. This starts the Microsoft Azure Site Recovery Registration Wizard.
In the registration wizard, use the downloaded .VaultCredentials file to register the Hyper-V host. Select Finish only after the registration wizard completes.
Return to the provider setup page in the Azure portal, and then select Finalize registration.

Note: It might take up to 15 minutes for the discovery of virtual machines to complete.

Task 2: Configure replication of Hyper-V VMs

Once you receive confirmation that registration is finalized, browse back to the **Azure Migrate az801l07a-migrate-project** page.
Under Execute on the left menu, select Migrations, and then select Start execution.

On the Specify intent page, specify the following settings, and then select Continue:

Setting	Value
What do you want to migrate?	Servers or virtual machines (VMs)
Where do you want to migrate to?	Azure VM
How will you select workloads?	From an assessment
Assessment	az801l07a-assessment
Discovery method	az801l07a-vma1

On the Workloads page, select the checkbox next to az801l07a-vm1, and then select Next.

On the Target settings page, specify the following settings (leave others with their default values):

Setting	Value
Subscription	the name of the Azure subscription you are using in this lab
Resource group	AZ801-L0703-RG
Replication Storage Account	the name of the storage account you created earlier in this lab
Virtual Network	az801l07a-migration-vnet
Subnet	subnet0
Secure Boot	Disabled

On the Compute tab of the Execute migration page, ensure that Standard_D2s_v5 is selected in the Azure VM Size drop-down list. In the OS Type drop-down list, select Windows, and then select Next.

[!NOTE] Use Standard_D2s_v5 first. If the size is unavailable or Azure lacks capacity in the target region, use Standard_D2s_v6. If that size is also unavailable, use Standard_D2s_v7.
On the Disks tab of the Execute migration page, accept the default settings, and then select Next.
On the Tags tab of the Execute migration page, accept the default settings, and then select Next.
On the Review + Start execution tab of the Execute migration page, review the settings, and then select Execute migration.
To monitor the initial replication, return to Execute > Migrations, and then select View by workloads if that view isn’t already displayed.
Locate az801l07a-vm1 and review its Execution stage and Execution status. During initial replication, the execution stage is Preparation.
Select az801l07a-vm1 in the Workload column and verify that Migration status is Healthy. Review any issues listed on this page before continuing.
Wait until the execution stage changes to Testing. This indicates that initial replication is complete and delta replication is in progress. This might take an additional 15 minutes.

Note: Refresh the Migrations page periodically to update the execution stage and status.

Task 3: Perform migration of Hyper-V VMs

On the Execute > Migrations page, select az801l07a-vm1 in the Workload column.
On the az801l07a-vm1 page, select Test migration.
On the Test migration page, select az801l07a-test-vnet as the target virtual network, and then select Test migration.

Note: Wait for the test migration to complete. This might take about 5 minutes.
In the Azure portal, go to the Virtual machines page and note the entry representing the newly replicated virtual machine az801l07a-vm1-test.

Note: Initially, the virtual machine will have the name consisting of the asr- prefix and randomly generated suffix, but will be renamed eventually to az801l07a-vm1-test.
Return to Execute > Migrations, and then select az801l07a-vm1 in the Workload column.
On the az801l07a-vm1 page, select Clean up test migration from the menu bar. Specify Testing is complete. Delete test virtual machine.
After the test migration cleanup completes, select Migrate from the menu bar on the az801l07a-vm1 page.
On the Migrate page, select Yes for Shut down virtual machines and perform a planned migration with no data loss, and then select Migrate.
To monitor the migration, return to Execute > Migrations and review the Execution stage and Execution status for az801l07a-vm1. The workload is tracked in the Completion stage after migration.

Note: Select az801l07a-vm1 in the Workload column to review Migration status and any reported issues.

Task 4: Remove Azure resources deployed in the lab

On SEA-SVR2, in the browser window displaying the Azure portal, open a PowerShell session on the Azure Cloud Shell pane.
From the Cloud Shell pane, run the following command to list all the resource groups you created in this lab:
```
Get-AzResourceGroup -Name 'AZ801-L070*'
```
Note: Verify that the output contains only the resource groups you created in this lab. These groups will be deleted in this task.
Run the following command to display the resource locks created during the migration:
```
Get-AzResourceLock -ResourceGroupName 'AZ801-L0703-RG'
```

Run the following command to remove the locks created by Azure Site Recovery:

Get-AzResourceLock -ResourceGroupName 'AZ801-L0703-RG' | Where-Object Notes -like '*Azure Site Recovery*' | Remove-AzResourceLock -Force

From the Cloud Shell pane, run the following to delete the resource groups you created in this lab:
```
Get-AzResourceGroup -Name 'AZ801-L070*' | Remove-AzResourceGroup -Force -AsJob
```
Note: The -Force parameter suppresses confirmation prompts but doesn’t override resource locks. The command executes asynchronously (as determined by the -AsJob parameter), so while you will be able to run another PowerShell command immediately after within the same PowerShell session, it will take a few minutes before the resource groups are actually removed.
